Insize ISD V250A - 250x150x200 mm Vision Measuring System with Computer


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Insize ISD V250A - 250x150x200 mm Vision Measuring System with Computer

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

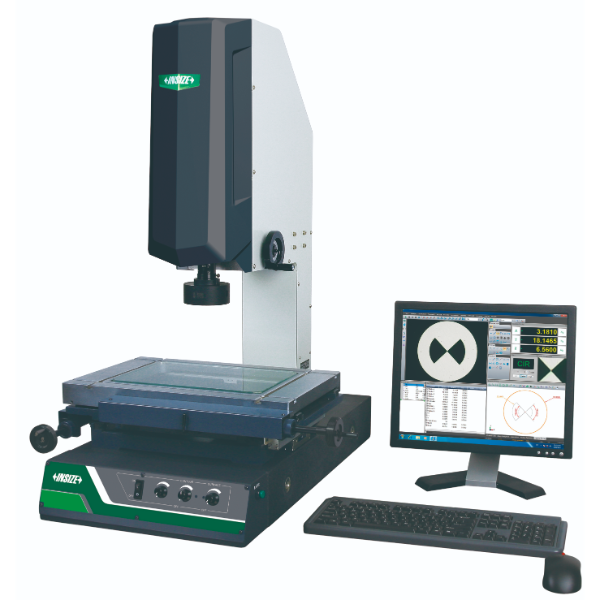

Insize - 250x150x200 mm Vision Measuring System with Computer is a very powerful instrument for non-contact dimension measurement. 250x150x200 mm Vision Measuring System with Computer measures the linear size and geometrical size in computer technology with high accuracy. Vision Measuring System with Computer canmeasure the linear size. Vision Measuring System is a very high-quality product and easy to use.

Product Specifications:

  • Brand: Insize
  • Camera: 1/3 inch Colour CCD, 0.3M pixel
  • Country of Origin: China
  • Dimensions: 760x600x900 mm
  • Drive Method: Manual
  • Glass Stage Size: 306x196 mm
  • Magnification: 33-195 X
  • Maximum Height at Workpiece: 160 mm
  • Maximum Weight at Workpiece: 20 Kg
  • Measuring Range: 250x150x200 mm
  • Model: ISD-V250A
  • Objective: 0.7-4.5 X (Zoom)
  • Operating System: Windows 7, 8, 10
  • Power Supply: 110/220 V, 50/60 Hz
  • Repeatability: 2 micro m
  • Resolution: 0.5 micro m
  • Stage Size: 450x280 mm
  • Weight: 120 Kg
  • Working Distance: 92 mm

Key Features:

  • High quality
  • Easy to use
Product Specifications

GENERAL

Brand:
Insize
Camera:
1/3 inch Colour CCD, 0.3M pixel
Country of Origin:
China
Dimensions:
760x600x900 mm
Drive Method:
Manual
Glass Stage Size:
306x196 mm
Magnification:
33-195 X
Manufacturer Details:
INSIZE INDIA LLP, Block B-09, Sumel-8, Nr. Ajit Mill Char Rasta, Rakhial Ahmedabad - 380023, India
Maximum Height at Workpiece:
160 mm
Maximum Weight at Workpiece:
20 Kg
Measuring Range:
250x150x200 mm
Model:
ISD-V250A
Objective:
0.7-4.5 X (Zoom)
Operating System:
Windows 7, 8, 10
Packer Details:
INSIZE INDIA LLP, Block B-09, Sumel-8, Nr. Ajit Mill Char Rasta, Rakhial Ahmedabad - 380023, India
Power Supply:
110/220 V, 50/60 Hz
Repeatability:
2 micro m
Resolution:
0.5 micro m
Stage Size:
450x280 mm
Weight:
120 Kg
Working Distance:
92 mm
