Buy Insize ISD V250 - 250x150x200 mm Vision Measuring System Online

Insize ISD V250 - 250x150x200 mm Vision Measuring System


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

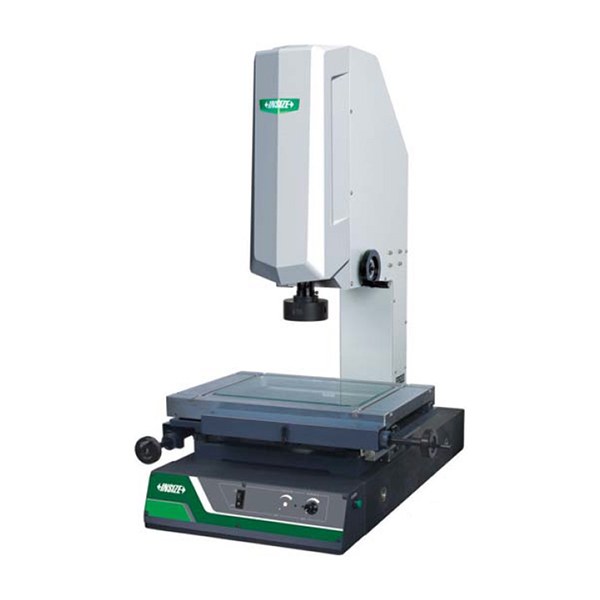

Insize ISD V250 - 250x150x200 mm Vision Measuring System

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The 250x150x200 mm Vision Measuring System manufactured by Insize is one of the best visions measuring systems available in India owing to its innovative design. The camera used in the Insize - 250x150x200 mm Vision Measuring System is 1/3 inch colour CCD and has 0.3M pixel. The maximum weight of the measuring system is 20 kg, and the maximum height of the system is 160 mm. The vision measuring system has a working distance of 92 mm. The measuring range of the vision system is 250 x 150 x 200 mm. The stage size of the system is 450 x 280 mm, whereas the glass stage size of the system is 306 x 196 mm. The resolution of the system is about 0.5μm.

Product Description:

Brand: Insize

Product: Vision Measuring System

Model: ISD V250

Size: 250 x 150 x 200 mm

Key Features:

Widefield Rapid batch

High-accuracy measurement

High-luminance


Product Specifications

GENERAL

Accuracy of XY axis:
2.5+L/100 micrometer
Brand:
Insize
Camera:
1/3 inch colour CCD, 1.5 M pixel
Country of Origin:
China/Taiwan
Dimension:
760x600x900 mm
Frequency:
50/60 Hz
Magnification:
33X - 195X
Manufacturer Details:
INSIZE INDIA LLP, Block B-09, Sumel-8, Nr. Ajit Mill Char Rasta, Rakhial Ahmedabad - 380023, India
Max. Height of workpiece:
160 mm
Max. Weight of workpiece:
20 kg
Measuring Range:
250x150x200 mm
Model:
ISD - V250
Objective:
0.7X - 4.5X
Operation system:
Windows 7
Packer Details:
INSIZE INDIA LLP, Block B-09, Sumel-8, Nr. Ajit Mill Char Rasta, Rakhial Ahmedabad - 380023, India
Power:
110/220 V
Repeatability of XY axis:
2 micrometer
Resolution of XYZ axis:
0.5 micrometer
Stage glass Size:
306x196 mm
Stage Size:
450x280 mm
Weight:
120 Kg
Working Distance:
92 mm
