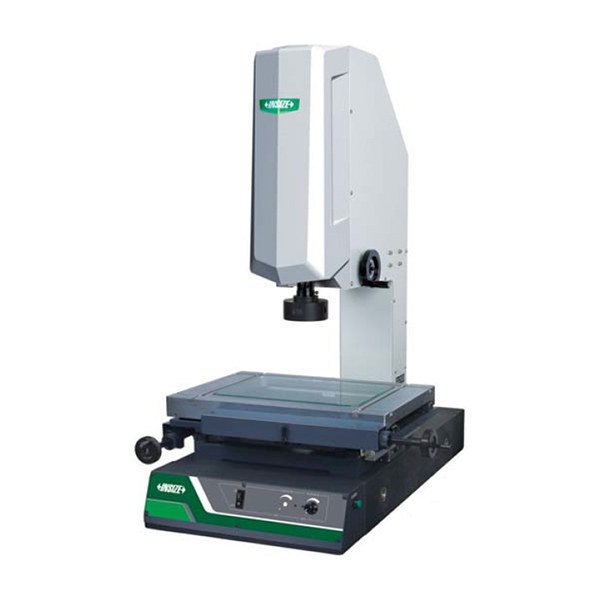

Insize ISD V150 - 150x100x200 mm Vision Measuring System


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Insize ISD V150 - 150x100x200 mm Vision Measuring System

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Insize - 150x100x200 mm Vision Measuring System has a special manufacturing process that ensures the high precision and the absolute sameness of all samples. The 150x100x200 mm Vision Measuring System can be used in automotive components, electronics, rubber parts, and plastic parts. The Vision Measuring System measurement data are displayed in real-time on the video image, allowing the tolerance limit to be observed at a glance. Vision measurement systems are primarily intended to locate and define the edge concerning any processes that may impact or change it. It is widely used in machinery manufacturing, automobiles, hardware, aerospace and other industries.

Product Specification:

Brand: Insize

Country of Origin: China/Taiwan

Max. Height of workpiece: 160 mm

Max. Weight of workpiece: 20 kg

Product No: ISO 2632

Weight: 100 Kg

IS Specification: ISO 2632

Key Feature:

Precisely engineered

Easy to operate

Made of pure Nickel

Superfinishing

Product Specifications

GENERAL

Accuracy of XY axis:
2.5+L/100 micrometer
Brand:
Insize
Camera:
1/3 inch colour CCD, 1.5 M pixel
Country of Origin:
China/Taiwan
Dimension:
560x540x850 mm
Frequency:
50/60 Hz
Magnification:
33X - 195X
Manufacturer Details:
INSIZE INDIA LLP, Block B-09, Sumel-8, Nr. Ajit Mill Char Rasta, Rakhial Ahmedabad - 380023, India
Max. Height of workpiece:
160 mm
Max. Weight of workpiece:
20 kg
Measuring Range:
150x100x200 mm
Model:
ISD - V150
Objective:
0.7X - 4.5X
Operation system:
Windows 7
Packer Details:
INSIZE INDIA LLP, Block B-09, Sumel-8, Nr. Ajit Mill Char Rasta, Rakhial Ahmedabad - 380023, India
Power:
110/220 V
Repeatability of XY axis:
2 micrometer
Resolution of XYZ axis:
0.5 micrometer
Stage glass Size:
210x160 mm
Stage Size:
354x228 mm
Weight:
100 Kg
Working Distance:
92 mm
