Buy Insize 4820 552 - 4 to 42 TPI Metric 60 Degree and Unified 60 Degree Screw Pitch Gauge Online

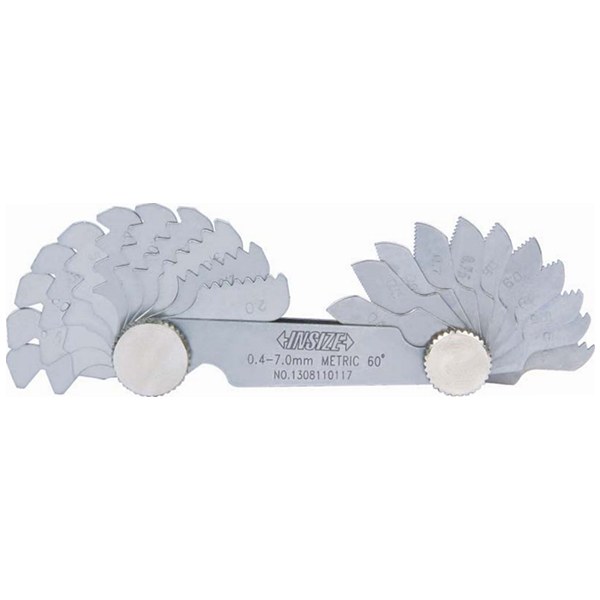

Insize 4820 552 - 4 to 42 TPI Metric 60 Degree and Unified 60 Degree Screw Pitch Gauge


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 piece
OR
Reach Us At +91-9243011081

Insize 4820 552 - 4 to 42 TPI Metric 60 Degree and Unified 60 Degree Screw Pitch Gauge

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Insize - 4 to 42 TPI Metric 60 Degree and Unified 60 Degree Screw Pitch Gauge is a premium quality Screw Pitch Gauge with high degree accuracy used for measuring purposes. The 4 to 42 TPI Metric 60 Degree and Unified 60 Degree Screw Pitch Gauge is made of carbon steel, so it does not have any chances to damage the thread. Metric 60 degrees 0.25-7mm and unified 60 degrees 4-42 TPI both modes can be used while measuring purposes, and they are always available in those 2 forms.

Product Specifications:

Brand: Insize

Origin: China / Taiwan

Product: Screw Pitch Gauge

Material: Medium Carbon Steel

Accuracy: +/- 0.07 mm

Measurement: Inch, mm

Number of Blades: 52

Product Number: 4820 – 552

Range: 0.4 – 7 mm, 4 – 42 TPI

Type: Metric 60 degrees and Unified 60 degrees Pitch

Key Features:

Available in 2 forms

High Degree Accuracy

Carbon Steel Body


Product Specifications

GENERAL

Accuracy:
+/- 0.07 mm
Brand:
Insize
Country of Origin:
China/Taiwan
Manufacturer Details:
INSIZE INDIA LLP, Block B-09, Sumel-8, Nr. Ajit Mill Char Rasta, Rakhial Ahmedabad - 380023, India
Material:
Medium Carbon steel
Metric Pitch of Blade:
0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.75 mm, 0.8 mm, 0.9, 1 mm, 1.25 mm, 1.5 mm, 1.75 mm, 2 mm, 2.25 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 6.5 mm, 7 mm
Model:
4820 - 552
No. of Blades:
52
Packer Details:
INSIZE INDIA LLP, Block B-09, Sumel-8, Nr. Ajit Mill Char Rasta, Rakhial Ahmedabad - 380023, India
Range:
0.4 - 7 mm, 4 - 42 TPI
Type:
Metric 60 Degree and Unified 60 Degree Screw
Unified Pitch of Blade:
4 TPI, 4 - 1/2 TPI, 5 TPI, 5 - 1/2 TPI, 6 TPI, 7 TPI, 8 TPI, 9 TPI, 10 TPI, 11 TPI, 11 - 1/2 TPI, 12 TPI, 13 TPI, 14 TPI, 15 TPI, 16 TPI, 18 TPI, 20 TPI, 22 TPI, 24 TPI, 26 TPI, 27 TPI, 28 TPI, 30 TPI, 32 TPI, 34 TPI, 36 TPI, 38 TPI, 40 TPI, 42 TPI
