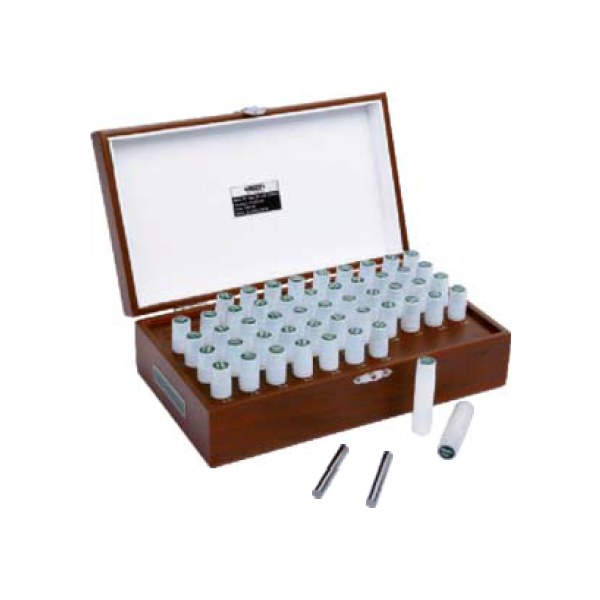

This Pin Gauge is easily available and has a definite shape and size according to your use. The main purpose of this gauge is to inspect the diameter of holes and measure it accurately. This Pin Gauge is used for measuring workpiece inner diameter in the full inspection process. The small diameter makes it suitable and efficient. This product is least effective with a temperature change. It has a good quantity that is 51 sets of pins. These Pin Gauges are used to gauge bore features. They're commonly used in combination to produce a "Go-No Go" gage that quickly qualifies a bored hole. Pins are especially useful for gaging the straightness of a relatively deep bore.
Product Feature:
Easily Portable
Gives out Consistent results
Temperature and weatherproof.
Good quality used
Protected with a shield.
The pins have a plastic covering to protect it from other damages.
Product specification:
Accuracy- +/-1 Micrometer
Brand- Insize
Made in- China/ Taiwan
Diameter- 7.50- 8.00 mm
Hardness- HRC62- 65
Material- Alloy Steel
Pin Gauge per set- 51 pieces
Product No- 4166- 8
Step- 0.01 mm
