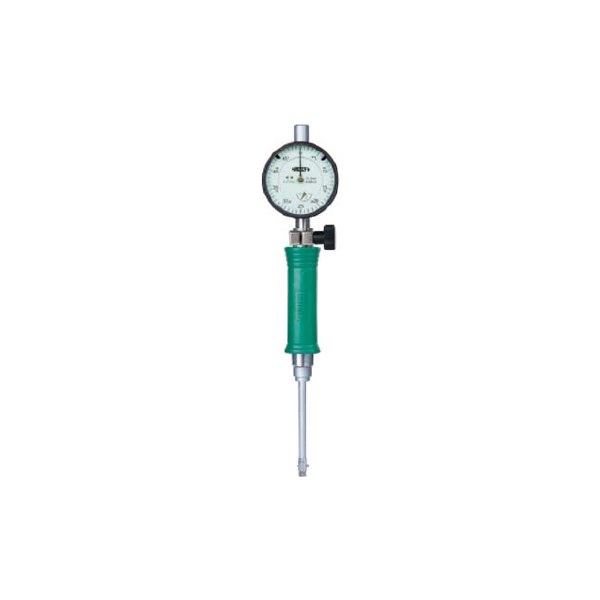

A bore gauge is used for measuring or transferring tools used to measure holes accurately. To calculate the larger diameter, you may use extended beam gauges. It is designed to measure the internal and external diameter. Insize has all its products made from high-quality materials and offers top-notch products at reasonable rates.
Product Specifications:
Type of Product: Dial Bore Gauge
Range (mm): 10-18.5 mm
Resolution: 0.01 mm
Bore Depth in mm: 105 mm
Indicator Code: 2311-3F
Contact Point: SR0.75 (Steel)
Repeatability: 0.003 mm
Accuracy: 0.012 mm
