Buy Indef - Standard Chain Pulley Block - 1 Ton Online

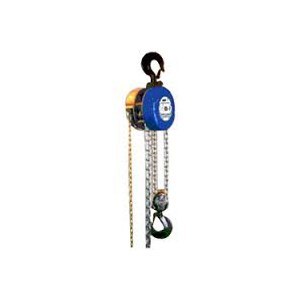

Indef - Standard Chain Pulley Block - 1 Ton


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Indef - Standard Chain Pulley Block - 1 Ton

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

An ISI Marked Manufacture from an ISO 9001:2000 Certified Company Bringing you assured quality & Interchangeability of Parts

Has been tested as per ISI procedures for 50% over load, delivering assured safety levels

Equipped with a Grade 80 Load Chain for Long chain life

Assuring you reliability with its Rugged German design and Customer Satisfaction spanning more than 30 years

Double Ball Bearing Supported Load Wheel for Smooth Operation

Precision Machined Case hardened alloy Steel Gears benefiting longer life span & noiseless operation

Fully Pocketed Malleable / S. G. Iron Cast Load Chain Wheel for safe and smooth running

Anti Rust and Better Aesthetics  With Anti - Corrosive Powder coated Zinc Plated parts

Product Specifications

GENERAL

B:
210 mm
Brand:
Indef
C:
180 mm
Capacity:
1 Ton
D:
210 mm
E:
195 mm
Extra Weight Per Additional Metre Lift:
2.9 kgs
F:
31 mm
H:
550 mm
Hand Chain Required To Be Passed Over For Load Through One Metre:
52 Metres
Head Room (A):
460 mm
Manufacturer Details:
Mangla Hoists pvt ltd, 1/9 B,Jindal House, Asaf ali road , New Delhi, Delhi-110002, India
Mono Blocks:
500 mm
No. of Falls:
1
Packer Details:
Mangla Hoists pvt ltd, 1/9 B,Jindal House, Asaf ali road , New Delhi, Delhi-110002, India
Running Pull On Hand Chain:
26 kgs
Standard Lift:
3 Metres
Thrust Bearing In Bottom Block H:
580 mm
Weight At 3 Metre Lift:
21 kgs
