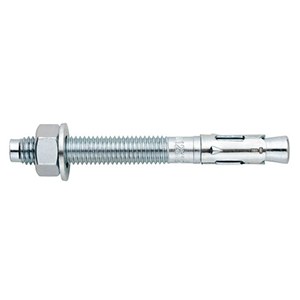

The ICFS - Through Bolt Anchor Diameter 20x170 mm is suitable for mild to heavy-duty anchoring into solid concrete. The ICFS Bolt Anchor uses high-quality materials and high-tech technology following industry quality standards. Because just a few spins are required to deliver the torque, the ICFS Bolt Anchor is easy to install. The tapered bolt is drawn into the expansion clip, expanding against the drill hole wall when the hexagonal nut gets tightened. The Bolt Anchor has an optimised expansion clip that provides homogeneous load distribution for high permitted loads, minimum edge distances and axial spacing with structural elements, and stable augmentation, even in cracked concrete walls.
Product Specifications:
Brand: ICFS
Model Number: TBA20170
Size: M-20 x 170 mm
Maximum Fixture Thickness: 23 mm
Product Type: Through Bolt Anchor
Finish: Zinc-plating
Country of Origin: India
Key Features:
Anchor bolt for through-the-wall installation.
When the hexagonal nut is adjusted, the tapered bolt is drawn into the expansion clip, stretching against the drill hole wall.
High corrosion resistance.
