Buy Ibell M300 106 - 300A, Dual Phase, Heavy Duty Inverter, Arc Welding Machine With Hoststar, Antistick and Arc Force Control Online
Ibell

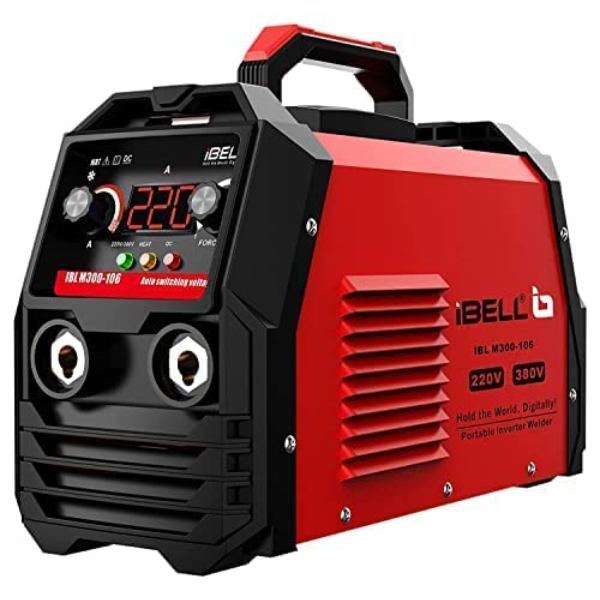

Ibell M300 106 - 300A, Dual Phase, Heavy Duty Inverter, Arc Welding Machine With Hoststar, Antistick and Arc Force Control


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Ibell

Ibell M300 106 - 300A, Dual Phase, Heavy Duty Inverter, Arc Welding Machine With Hoststar, Antistick and Arc Force Control

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • [SPECIFICATIONS] Rated voltage : 220V 380V±15 Percent; Input Capacity: 6.1KVA(220V)/8.3KVA(380V); Input Current : 28 A(220V) / 22.1 A(380V); No Load Voltage : 45 V; Current Range : 120 A(220V) / 160 A(380V); Max Current : 140 A(220V) / 180 A(380V); Usable electrodes : 1.6 to 5.0 mm; Protection Class : IP21S
  • [DUAL-PHASE WELDER] M300-106 is a heavy duty MMA welding machine that can be operated at both single phase (220-230V) and 380V phase.
  • [IGBT TECHNOLOGY] The machine uses a high performance IGBT Technology, which is very useful as it gives power that can be used for different welding processes.
  • [FEATURES] Hot Start provides excellent arc ignition without the electrode sticking and avoiding any metallurgical default in the weld. Its Anti-sticking feature minimizes the short circuit current in the event of the electrode sticking to the work piece. VRD (Voltage Reduction Device)in-built function provides an additional measure of safety. Arc force in-built improves the weld performance on the specified size of electrodes to be used, making the job easier.
Product Specifications

GENERAL

Accessories:

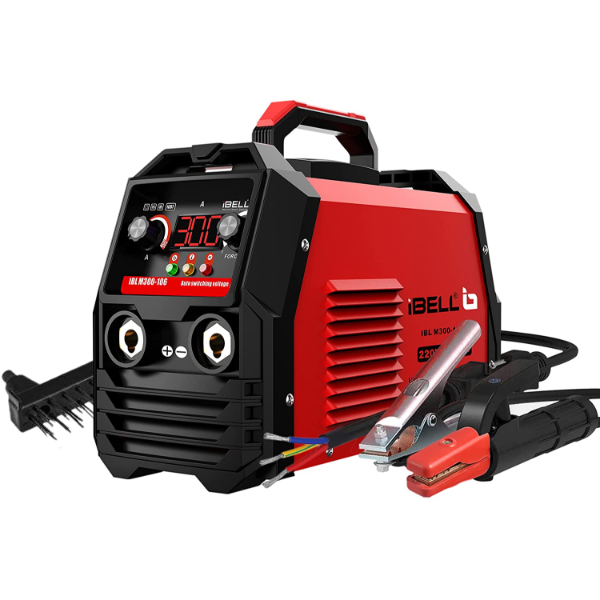

Electrode Holder, Earth Clamp, Tig Torch, Tungsten Needle, Collet, Back Cap
Brand:
Ibell
Country of Origin:
India/China
Current:
Range - 20 to 160A, TIG 5 to 200A, Max Current - 140 A(220V) / 180 A(380V)
Dimensions:
40.5x27x29 cm
Frequency:
50-60 Hz
Input Capacity:
6.1KVA(220V)/8.3KVA(380V)
Manufacturer Details:
HiTech Machineries & Equipments, H&K EDIFICE, Thottumugham P.O, Aluva Ernakulam (Dist), Kerala, India 683105
Model:
M300 106
No Load Voltage:
45V
Other Features:
Built In - Hot Star, Antistick, ARC Force, Dual Phase Function, MMA Function, IGBT Technology
Packers Details:
HiTech Machineries & Equipments, H&K EDIFICE, Thottumugham P.O, Aluva Ernakulam (Dist), Kerala, India 683105
Protection class:
IP21S
Usable Electrodes:
1.6 to 5.0 mm
Voltage:
220 to 380 V +/- 15 Percent
Warranty:
2 Year
Weight:
7 Kg
