Buy Ibell IBL T250 106 - 220A, IGBT Antistick Inverter, TIG/MMA Welding Machine With 10 Tungsten Rod and Accessories Online

Ibell IBL T250 106 - 220A, IGBT Antistick Inverter, TIG/MMA Welding Machine With 10 Tungsten Rod and Accessories


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Ibell IBL T250 106 - 220A, IGBT Antistick Inverter, TIG/MMA Welding Machine With 10 Tungsten Rod and Accessories

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • [Specification] Rated voltage : 220V ± 15 Percent, 50/60Hz Input capacity : 10.8 KVA Input current : 43 A No load voltage : 45 V MMA output current : 20-160 A TIG output current : 5 -200 A, Usable electrode: 1 to 5 mm, Protection class: IP21
  • [Dual Operation] The welding machine can be operated as both MMA (Manual Metal Arc) and Tungsten Inert Gas (TIG). 1. TIG welding uses a non-consumable tungsten electrode to produce the weld. The weld area and electrode are protected by an inert shielding gas (argon). 2. In MMA, with a consumable, flux-covered electrode and ground clamp, a short-circuit is initially created across the weld piece.
  • [IGBT Technology] The machine uses a high performance IGBT technology, which is very useful as it gives power that can be used for various welding processes.
  • [Features] Hot start provides excellent arc ignition without electrode sticking and avoiding any metallurgical default in the weld. Its anti-sticking feature minimizes short circuit current in the event of the electrode sticking to the work piece. The VRD (Voltage Reduction Device) in-built function provides an additional measure of protection. Improves weld performance on specified size of arc force in-built electrode, making work easier

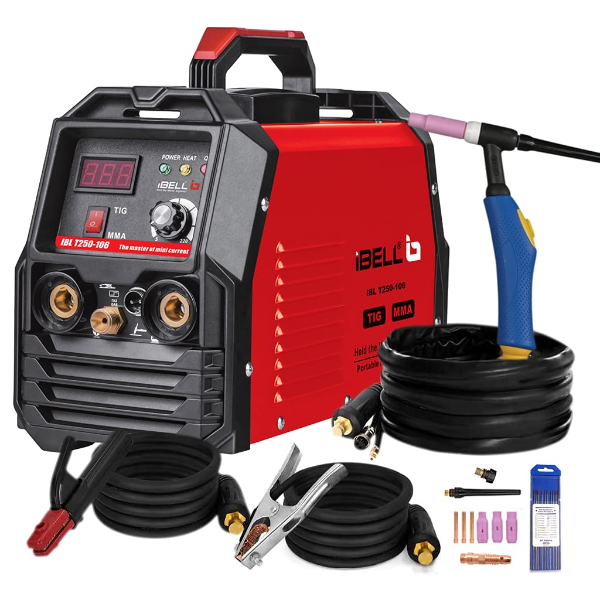

  • [Accessories] Package includes electrode holder, earth clamp, TIG torch, tungsten needle, collet, back cap, etc.
Product Specifications

GENERAL

Accessories:
Electrode Holder, Earth Clamp, Tig Torch, Tungsten Needle, Collet, Back Cap
Brand:
Ibell
Country of Origin:
India/China
Dimensions:
40.5x29x28 cm
Duty Cycle:
60 Percent
Efficiency:
80 Percent
Frequency:
50-60 Hz
Input Capacity:
10.8 KVA
Insulation Class:
F
Manufacturer Details:
HiTech Machineries & Equipments, H&K EDIFICE, Thottumugham P.O, Aluva Ernakulam (Dist), Kerala, India 683105
Model:
IBL T250 106
No Load Loss:
40W
No Load Voltage:
45V
Other Features:
Built In - Hot Star, Antistick, ARC Force, VRD
Output current:
20 to 160A, TIG 5 to 200A
Packers Details:
HiTech Machineries & Equipments, H&K EDIFICE, Thottumugham P.O, Aluva Ernakulam (Dist), Kerala, India 683105
Protection class:
IP21
Usable Electrodes:
1 to 5 mm
Voltage:
220 V +/- 15 Percent
Warranty:
1 Year
Weight:
8.870 Kilo Grams
