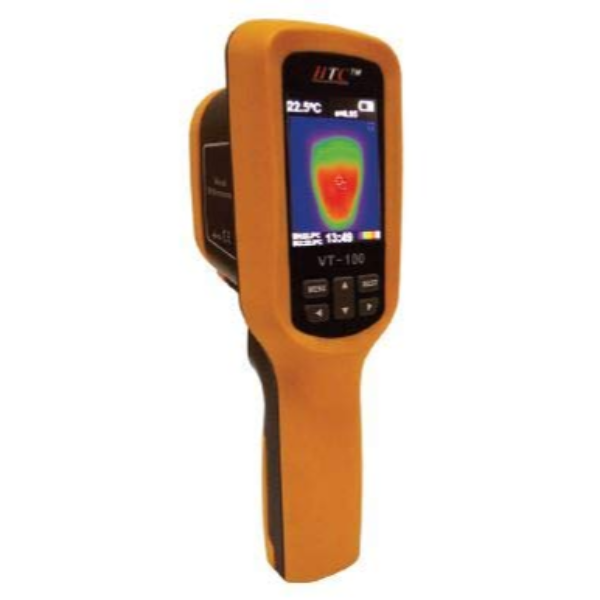

The HTC - 6 Hz Thermal Imaging Camera is a form of thermographic camera. Such a Thermal Imaging Camera enables the user to see heat areas through smoke, darkness, or heat permeable barriers by converting infrared radiation to visible light. The 6 Hz Thermal Imaging Camera is typically handheld but may be helmet-mounted. The Thermal Imaging Camera has a selectable colour palette for user convenience. The HTC - 6 Hz Thermal Imaging Camera can be equipped with a Micro SD Card to store images. The Thermal Imaging Camera is battery-powered. Additionally, the camera is provided with a 12-minute inactivity power-off function.
Product Specification:
Brand: HTC
Country of Origin: China
Dimensions: 223x88x65 mm
Emissivity: Adjustable 0.1-1.0
Frequency: 6 Hz
Power Supply: AA 1.5V X 4
Battery Life: 6 hours
Weight: 310 grams
Display: TFT Colour LCD
Spectral Band: 8 – 14 um
Thermal Sensitivity: 0.15 C / 0.27 F
Model: VT-100
Visible Light Image Resolution: 300000 pixels
Key Features:
Immune to visual limitations
Higher return on investment
Fewer false alarms
Low light scenarios
Detection of electrical faults
Lightweight
