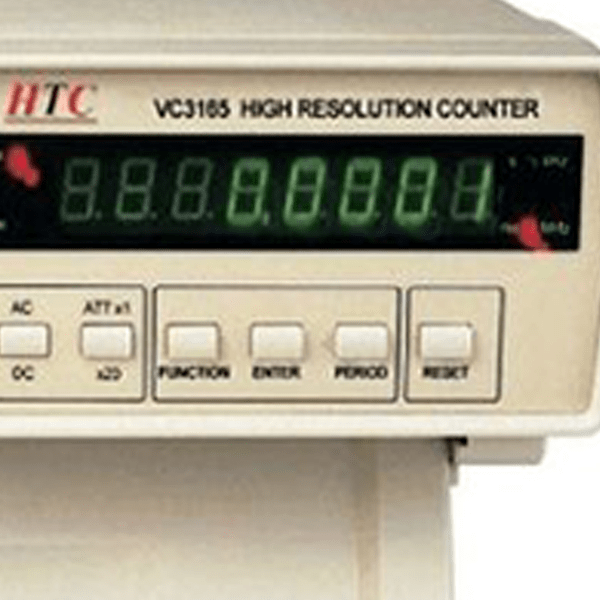

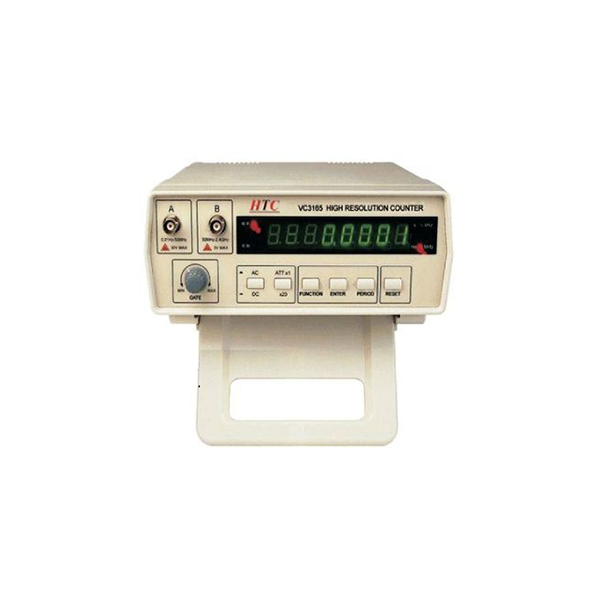

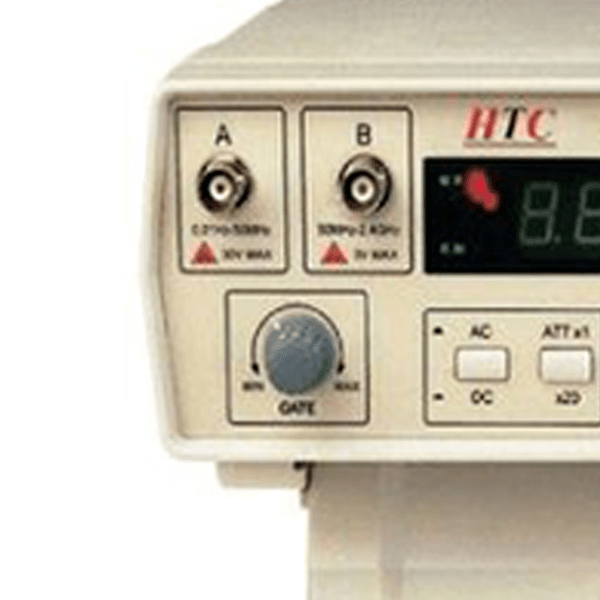

The HTC - 20 dB Frequency Counter is a white 20-decibel Frequency Counter with a frequency ranging between 0.01Hz - 2.4GHz and a cyclic measurement range between 0.5nS - 10S. The 20 dB Frequency Counter has a bench-top structure and 8 digits green LED display with selective range and high stability. Also, it has two channels and an operation mode memory Range with gate time, adjustable Power supply for AC 110V/220V. It comes with a warranty of one year, and product dimensions are 270x215x100 mm. It is a complete set with standard accessories- power cord and instruction manual of size, 270 x 215 x 100mm.
Product Specifications:
Accuracy: Time Base Error X Frequency+1 Digit
Attenuation: 20 dB
Brand: HTC
Cyclic Measurement Range: 0.5 nS-10 S
Dimensions: 270x215x100 mm
Display: 8
Digit LED Display
Frequency range: 0.01 Hz-2.4 GHz
Input Impedance: 1 M Ohm
Model: VC-3165
Time Gate: 100 mS-10 S
