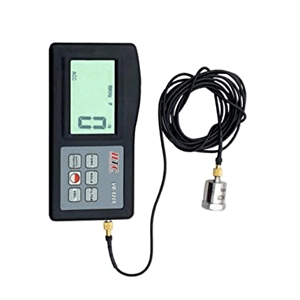

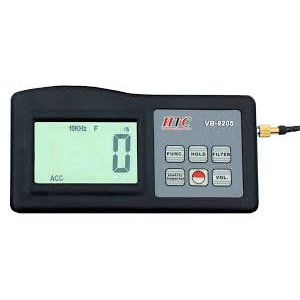

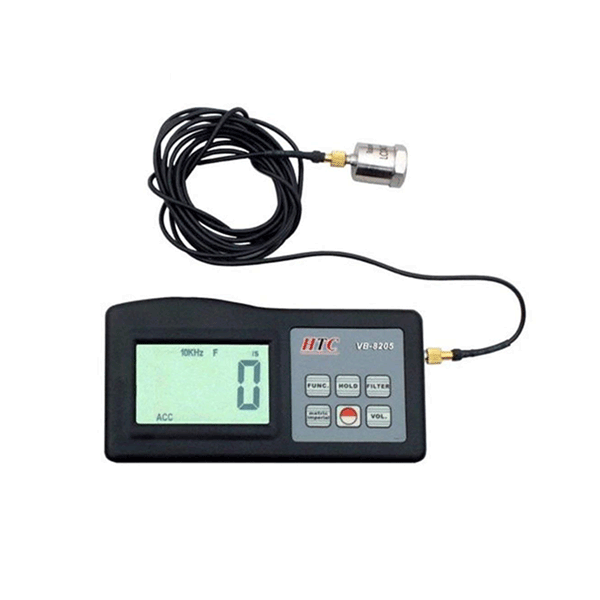

HTC - 4 Digit LCD Vibration Meter is a general-purpose meter connected to various accelerometers according to the potential application. The frequency range of this 4 Digit LCD Vibration Meter is 1 ~ 20 kHz. The LCD Vibration Meter is designed for easy on-site vibration measuring of all rotating machinery, capable of measuring vibration risk measurement, machine monitoring or vibration analysis. The Vibration Meter may influence the durability and reliability of mechanical systems.
Product Specifications:
Brand: HTC
Country of Origin: China
Dimensions: 124x62x30 mm
Model: VB-8205
Revolution: 60 to 99.990
Revolution per minute
Vibration acceleration: 0.1-200.0 metre per second square
Vibration Displacement: 0.001 to 4 mm
Vibration Velocity: 0.01 to 40 Centimetre per second
Frequency - 1 ~ 20 kHz
Item Weight: 2 kg 600 g
Product Name: 4 Digit LCD Vibration Meter
Display: 4 Digits, 18mm LCD
