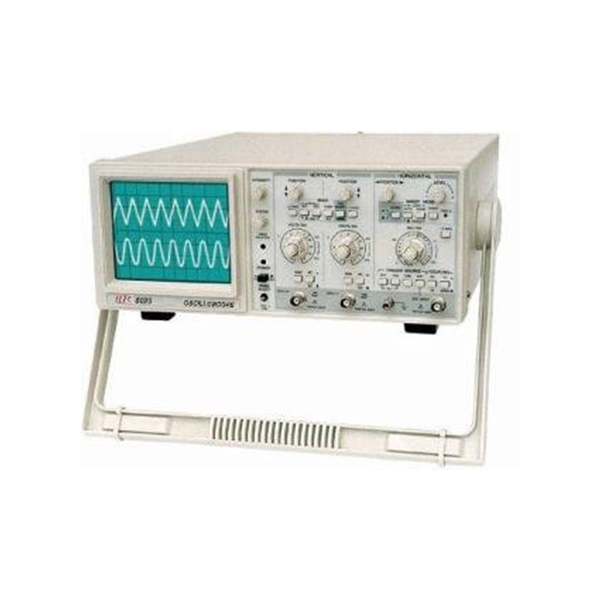

HTC- 20 MHz Dual Channel Oscilloscope with Component Test consists of a microprocessor-based operating system that controls the equipment's functions. The 20 MHz Dual-Channel Oscilloscope with Component Test comprises a high-intensity 6-inch rectangular screen along with the cathode-ray tube and red internal graticule. The screen of Dual Channel Oscilloscope with Component Test displays readable traces. The Oscilloscope is designed with an in-built 6-digit frequency counter that is accurate to ± 0.02%. It can measure frequencies between 1kHz to 20MHz.
Product Specifications:
Amplitude: 0.5 Vp-p, +/- 2 Percent
Band Width: DC-20 MHz
Brand: HTC
Component Test: Capacitor, Coil, Zener, Diode
Country of Origin: China
Frequency: 1 kHz, +/- 2 Percent
Maximum Input: 400 V
Model: HTC-5020C
Sweep Mode: Lock, Auto, Single
Wave: Rectangle
Y Deflection: 5 mV-10 V per div
Product Name: Dual Channel Oscilloscope with Component Test
