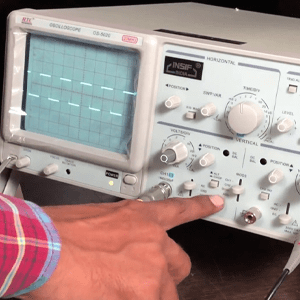

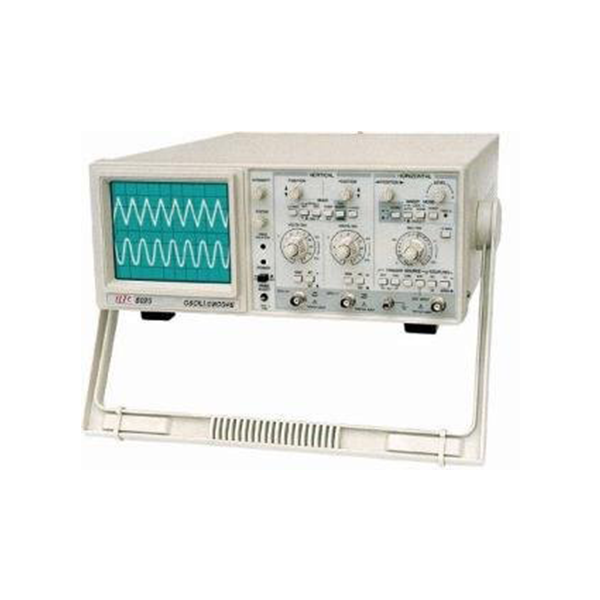

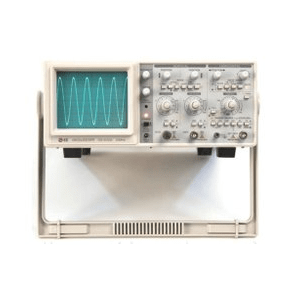

HTC - 20 MHz Dual Channel Oscilloscope is used to compare two or more voltages. It has two portable oscilloscopes. The 20 MHz, Dual Channel Oscilloscope is used for cursor readout and digitised panel setting with a unique operating system. The Dual Channel Oscilloscope uses a large display panel with the cathode ray tube, which is used to display the voltage, time and frequency measurement.
Product Specifications:
Amplitude: 0.5 Vp-p, +/- 2 Percent
Band Width: DC-20 MHz
Brand: HTC
Country of Origin: China
Frequency: 1 kHz, +/- 2 Percent
Maximum Input: 400 V
Model: HTC-5020
Sweep Mode: Lock, Auto, Single
Wave: Rectangle
Y Deflection: 5 mV-10 V per div
Bandwidth: Dc - 20mhz (-3db)
Sweep rate: 0.1μs/div - 0.2s/div l—2—5 20 steps, error plus or minus5%
Trig source: Y1, y2, alt, line, ext
Min sync. Level: Trig 5hz - 20mhz 10hz- 20mhz
