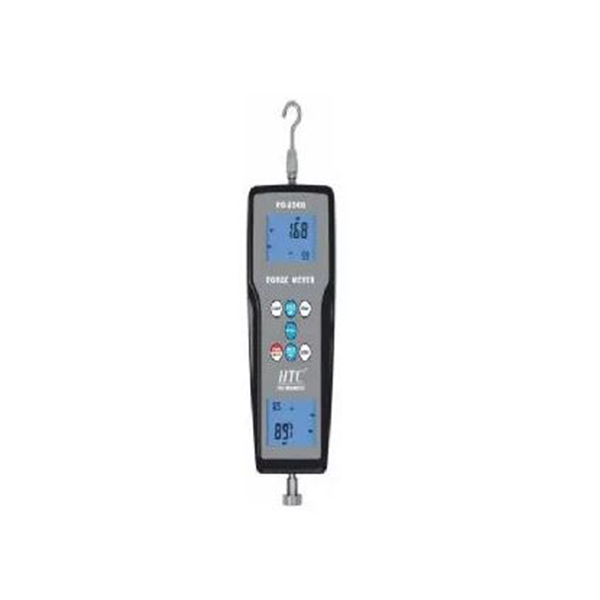

HTC - 20 Kg Force Gauge has high accuracy and wide capacity. The 20 Kg Force Gauge is used for developing rifles and machine guns for measuring the amount of recoil in prototypes. The Gauge uses a strain gauge that translates the magnitude of the applied or measured force to an electrical signal that can be quantified, calibrated, and digitised to display directly.
Product Specifications:
Brand: HTC
Accuracy ± (0.5 % + 2 d), within 23 ± 5 .°C
Country of Origin: China
Force Measuring Range: 20 Kg
Model: FG-20 Kg
Name of the Product: Force Gauge
Display: LCD
Deflection Display: Positive or Reverse direction
Dimension: 227 x 83 x 39 mm ( 8.9 x 3.3 x 1.5 inch )
Resolution: 0.01 Kg/0.01 LB/0.05 Newton
Weight: 551 g ( 1.2 LB )/with batteries
Min. Display: 0.01 Kg/0.01 LB/0.05 Newton
