HTC DM 97 - 0.1 mV to 1000 V Digital Multimeter with Temperature


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
HTC

HTC DM 97 - 0.1 mV to 1000 V Digital Multimeter with Temperature

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

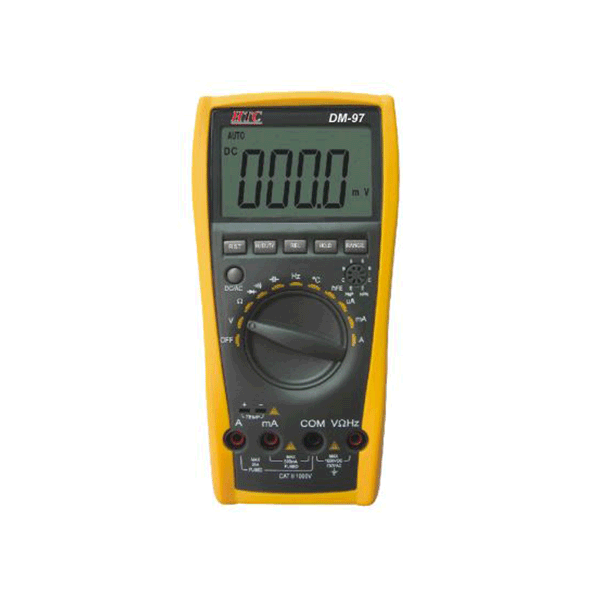

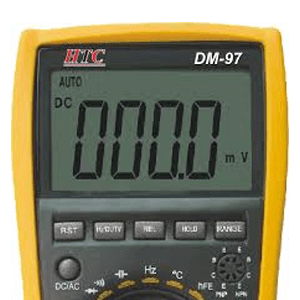

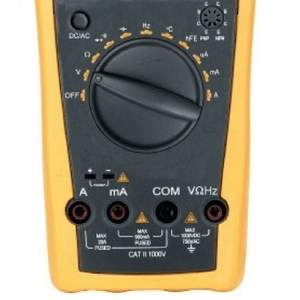

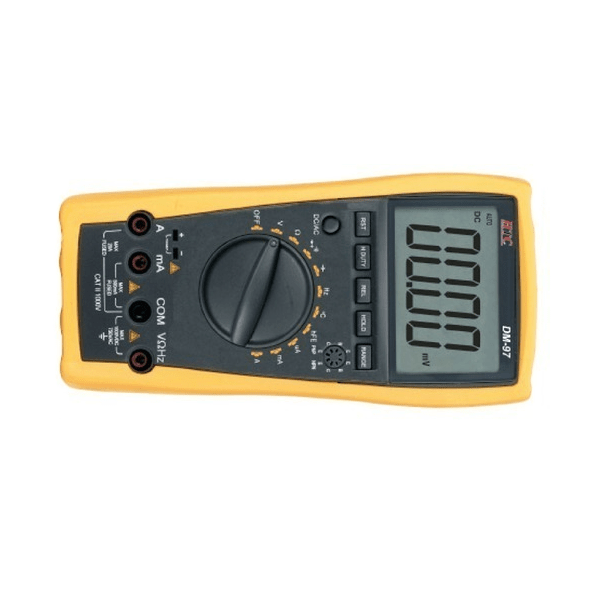

The HTC DM 97 is a standard multimeter with a few extra features. This HTC digital multimeter can do capacitance, temperature, transistor and frequency/duty cycle tests in addition to current and voltage tests. The 3¾ digital multimeter has a 4000-count large LCD display with auto/manual range. There is no power off feature on normal operation. There is a data hold option with retention of maximum and minimum values. Test leads, manual, TP 01 bead-type temperature probe and holster are provided with the HTC DM 97.

Product Attributes:

• DC voltage of 0.1 mV – 1000 V accurate to ±0.5% + 4
• AC voltage of 0.1 mV - 750 V accurate to ±0.8%+ 6
• DC current of 0.1 µA - 20 A accurate to ±1.0% + 5
• AC current of 0.1 µA - 20 A accurate to ±1.5% + 5
• Resistance range of 0.1 W - 40 MW accurate to ±0.8% + 2
• Capacitance of 10 pF - 200 µF accurate to ±3.5% + 8
• Frequency range of 0.1 Hz - 30 MHz accurate to ±0.5% + 4
• Measure temperatures from -40º to 1000ºC accurate to ±0.8% + 4
• hFE (NPN or PNP) from 0-1000
• Product dimensions of 185(H) x 93(W) x 35(D) mm

Benefits:

• Variety of functions
• Fairly accurate
• Easy to use

Product Specifications

GENERAL

AC voltage:
0.1 mV-750 V
AC Voltage Accuracy:
+/- 0.8 Percent, +6 Digits
Brand:
HTC
Country of Origin:
China
DC current:
0.1 mA-20 A
DC Current Accuracy:
+/- 1.0 Percent, +5 Digits
DC voltage:
0.1 mV-1000 V
DC Voltage Accuracy:
+/- 0.5 Percent, +4 Digits
Dimensions:
185x93x35 mm
Manufacturer Details:
HATCO Industries, Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai – 400 002
Model:
DM-97
Packer Details:
HATCO Industries, Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai – 400 002
Resistance:
0.1 Ohm-40 M Ohm
Resistance Accuracy:
+/- 0.8 Percent, +2 Digits
Temperature:
-40 Deg to 1000 Deg
