Buy HTC DM 88 - 0.1 mV to 1000 V Logic Digital Multimeter Online
HTC

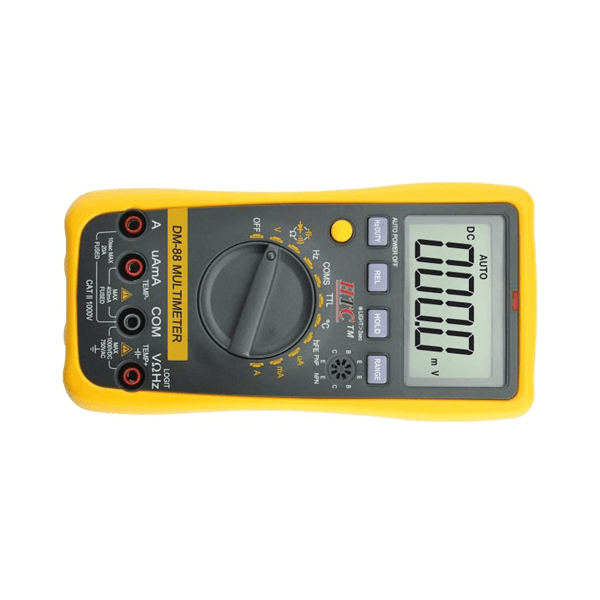

HTC DM 88 - 0.1 mV to 1000 V Logic Digital Multimeter


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
HTC

HTC DM 88 - 0.1 mV to 1000 V Logic Digital Multimeter

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The HTC DM 88 can do capacitance, frequency/duty cycle, temperature and transistor tests. The 0.1 mV to 1000 V logic digital multimeter has the additional option of doing COMS and TTL logic tests. This HTC digital multimeter does not power off under natural operation. The multimeter has a data hold function with a minimum and maximum value hold capability. The LCD display is larger than other HTC digital multimeters, making reading from it fairly easy.

Product Attributes:

• DC voltage of 0.1 mV - 1000 V accurate to ±0.5% + 4
• AC voltage of 0.1 mV – 750 V accurate to ±0.8%+ 6
• DC current of 0.1 µA – 10 A accurate to ±1.0% + 5
• AC current of 0.1 µA - 10A accurate to ±1.5% + 5
• Resistance range of 0.1Ω – 40 mΩ accurate to ±0.8% + 1
• Capacitance of 10 pF – 200 µF accurate to ±3.5% + 8
• Frequency range of 0.1 Hz – 30 MHz accurate to ±0.5% + 4
• Measure temperatures from -40º to 1000ºC accurate to ±0.8% + 5
• Product dimensions of 170(H) x 86(W) x 35(D) mm

Benefits:

• Extremely multi-functional
• Portable
• Large display

Product Specifications

GENERAL

AC voltage:
0.1 mV-750 V
AC Voltage Accuracy:
+/- 0.8 Percent, +6
Brand:
HTC
Country of Origin:
China
DC current:
0.1 mA-10 A
DC Current Accuracy:
+/- 1.0 Percent, +5 Digits
DC voltage:
0.1 mV-1000 V
DC Voltage Accuracy:
+/- 0.5 Percent, +4 Digits
Dimensions:
170x86x35 mm
Manufacturer Details:
HATCO Industries, Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai – 400 002
Model:
DM-88
Packer Details:
HATCO Industries, Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai – 400 002
Resistance:
0.1 Ohm-40 M Ohm
Resistance Accuracy:
+/- 0.8 Percent, +1 Digit
