Description

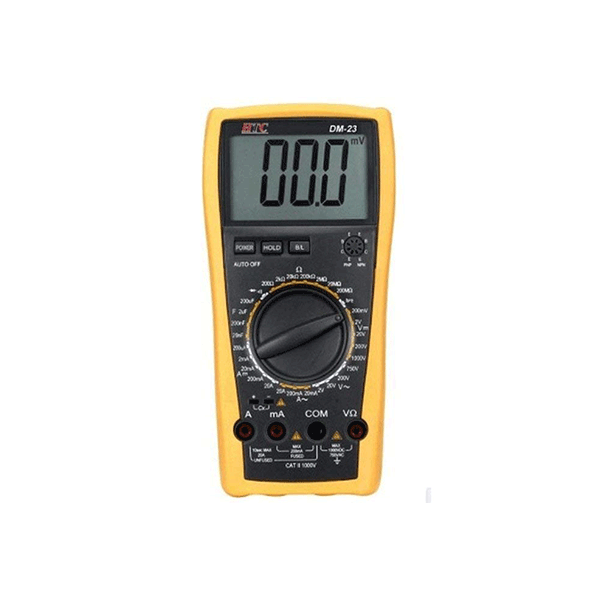

HTC digital multimeters are versatile instruments. The HTC DM 23 provides testing options on conductance, capacitance, frequency, resistance, current and voltage. This 10 mV to 750 V digital multimeter has a large LCD display with manual range. The 4½ digital multimeter has 20,000 counts. There is no power-off under natural operation in this model by HTC. There is a data hold feature with maximum range retained in memory. Test leads, holster and manual are accessories shipped with the HTC DM 23.

Product Attributes:

• DC voltage of 10 mV – 1000 V accurate to ±0.05% + 3
• AC voltage of 10 mV – 750 V accurate to ±0.8%+ 25
• DC current of 0.01 mA – 20 A accurate to ±0.5% + 4
• AC current of 10 mA – 20 A accurate to ±1.5% + 25
• Resistance range of 0.01 Ω – 200 MΩ accurate to ±0.2% + 5
• Capacitance of 0.1 pF – 200 µF accurate to ±3.5% + 10
• Frequency range of 200 kHz accurate to ±3.0% + 15
• hFE (NPN or PNP) from 0 - 1000
• Product dimensions of 185(H) x 93(W) x 35(D) mm

Benefits:

• Easy reading of measurements
• Access to previous readings
• Multi-function

Product Specifications

GENERAL

AC voltage:
10 mV-750 V
AC Voltage Accuracy:
+/- 0.8 Percent, +25 Digits
Brand:
HTC
Country of Origin:
China
Counts:
20000
DC current:
0.01 mA-20 A
DC Current Accuracy:
+/- 0.5 Percent, +4 Digits
DC voltage:
10 mV-1000 V
DC Voltage Accuracy:
+/- 0.05 Percent, +3 Digits
Dimensions:
185x93x35 mm
Manufacturer Details:
HATCO Industries, Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai – 400 002
Model:
DM-23
Packer Details:
HATCO Industries, Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai – 400 002
Resistance:
0.01 Ohm-200 M Ohm
Resistance Accuracy:
+/- 0.2 Percent, +5 Digits
