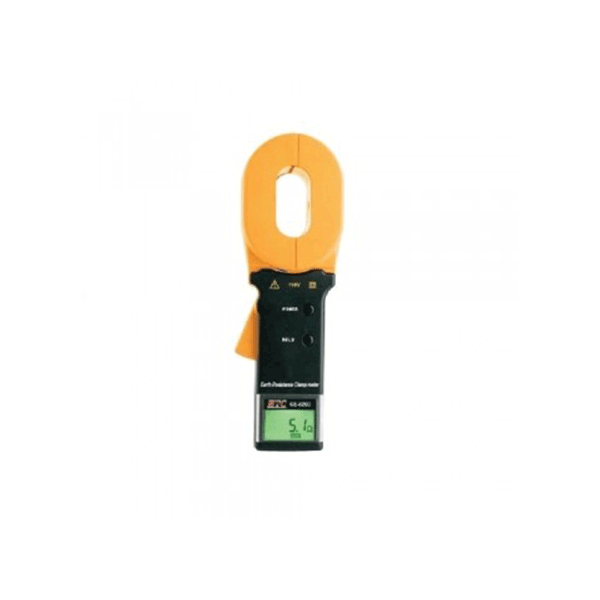

HTC - 1200 Ohm Clamp-on Ground Resistance Tester has 0.01Ω high accuracy for low resistance measurement and can log data up to 99 groups. Along with Leakage Current measurement from 0.1mA to 20A, the Clamp-on Ground Resistance Tester also has an Alarm Threshold setting from 1Ω to 100Ω. It comes with a wide 3-¾ backlit LCD up to 1999 digits count. The 1200 Ohm Clamp-on Ground Resistance Tester is designed with auto power-off settings with MAX/MIN data hold that provides overload protection, double insulation, low battery indication. The dimensions of the Ground Resistance Tester are 285x85x66 mm.
Product Specifications:
Accuracy: +/- 1.5 Percent, +0.01 Ohm
Brand: HTC
Country of Origin: China
Dimensions: 275x110x54 mm
Earth Resistance Measurement: 1200 Ohm
Leakage Current Range: 0-20 A
Model: CE-8201
Warranty: 1 year
Resistance Range: 0.01-1200 Ohm
Resolution: 0.001 Ohm-20 Ohm
Weight: 1032 grams
