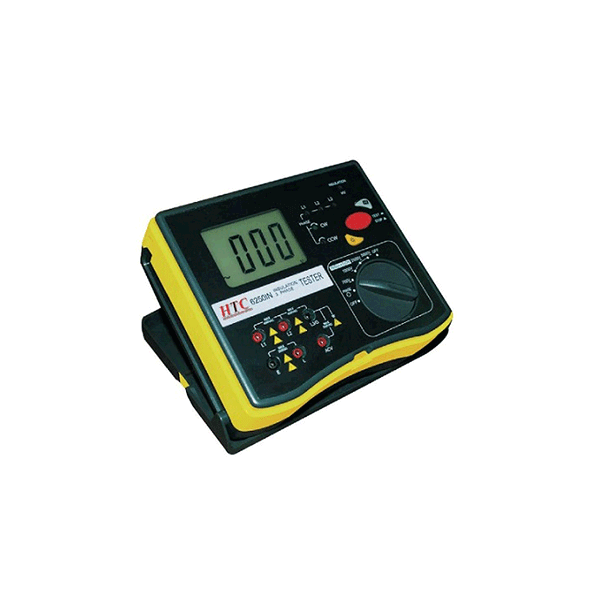

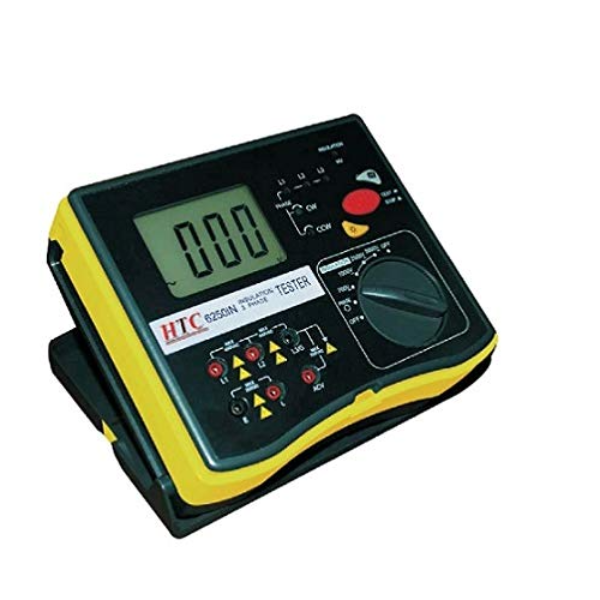

The HTC - 200 G Ohm Digital Insulation Tester is an instrument for the testing voltage with a range of 1000v,2500v,5000v. The 200 G Ohm Digital Insulation Tester can measure an alternating current voltage ranging between 0-700v. This Digital Insulation Tester has an accuracy of 2.0% with a resolution of 1V. With a weight of 1.5 kg, this Insulation Tester also has a wide 3-½ LCD display for results up to 1999 counts, which is backlit for clarity. The device also has data hold and auto-ranging, 3 in 1 insulation resistance, phase testing and voltage testing. It comes with a carrying case, test leads and a manual.
Product Specifications:
Brand: HTC
Country of Origin: China/ India
Dimension: 150x100x70 mm
Insulation Resistance: 0.1 MW-200 GW
LCD Display: 3 1/2 Digits
Model: 6250IN
Item Weight: 2kg 540gm
Testing Voltage: 1000 V, 2500 V, 5000 V
