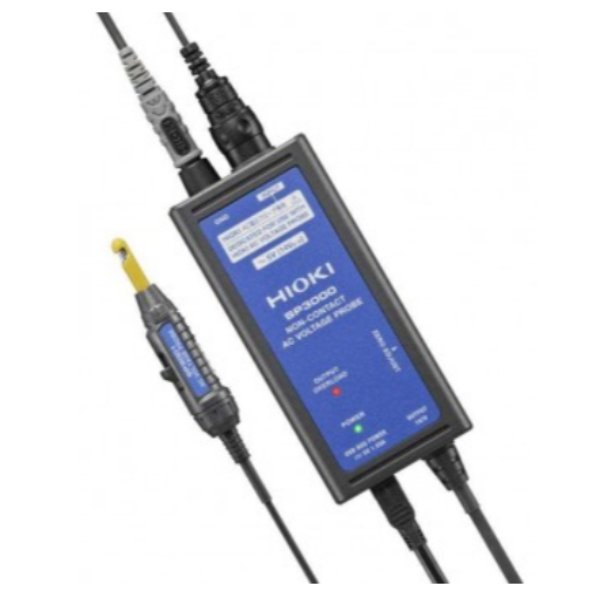

The Hioki- Non-Contact AC Voltage Probe is a non-contact AC voltage waveform probe perfect for device control and sensor signal maintenance. The AC Voltage Probe can be placed outside the insulation cover of a cable to catch the signal. This Non-Contact AC Voltage Probe also observes waveforms with an oscilloscope or a Hioki Memory HiCorder by visualising signals when the probe is brought within the vicinity of the wiring. In addition, this Voltage Probe captures LIN and other communication signals. It also measures signals from electric equipment on vehicles. The Hioki- Non-Contact AC Voltage Probe is provided with a protective sleeve for user protection.
Product Specifications:
Measurement method: Capacitive-coupled current cancellation
Measurable wire type: Insulated wire
Mass: 160 g (including cable)
Rated Measured Voltage: 5 V RMS
Maximum Input Voltage: RMS: 30 V RMS or less; Peak Value: 42.4 V Peak or less
Output Rate: 1 V/V
Frequency Range: 10 – 100 Hz
Key Features:
Perfect for device control
Cost-efficient and reliable
Catches multiple signals
