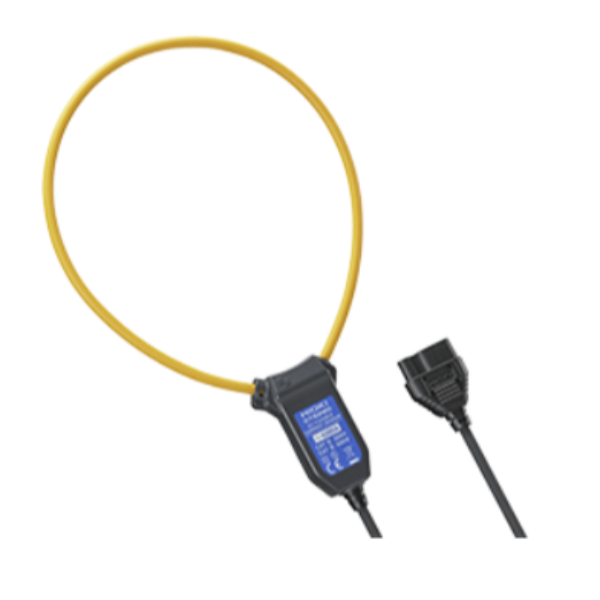

The Hioki - AC Flexible Current Sensor can be used in places where hard jaws cannot be used. Furthermore, the sensor cable’s 5 mm cross-sectional diameter is small, making it easy to install. The AC Flexible Current Sensor can be used with Hioki AC Clamp Meter. The Hioki - AC Flexible Current Sensor is suitable for CAT III and CAT IV environments. The Hioki - AC Flexible Current Sensor is flexible and resistant to breaking or tearing.
Product Specifications:
Brand: Hioki
Model: CT6280
Product: Current sensor
Power source: Corded electric
Maximum input current: 4200 A AC, continuous (50 Hz to 60 Hz)
Core jaw diameter: 130 mm (5.12 in)
Cross-section diameter of sensor cable: 5 mm (0.20 in);
Sensor-tip cap diameter: 7 mm (0.28 in))
Dimensions: 42 mm (1.65 in) W × 65 mm (2.56 in) H × 18 mm (0.71 in) D (excluding the flexible loop and output cable)
Weight: 71 g (2.5 oz)
Cable length: 800 mm (31.5 in)
Key Features:
Exceptional sensitivity
Exceptional precision and linearity
DC and AC measurements with a wide bandwidth
Moderate power usage
