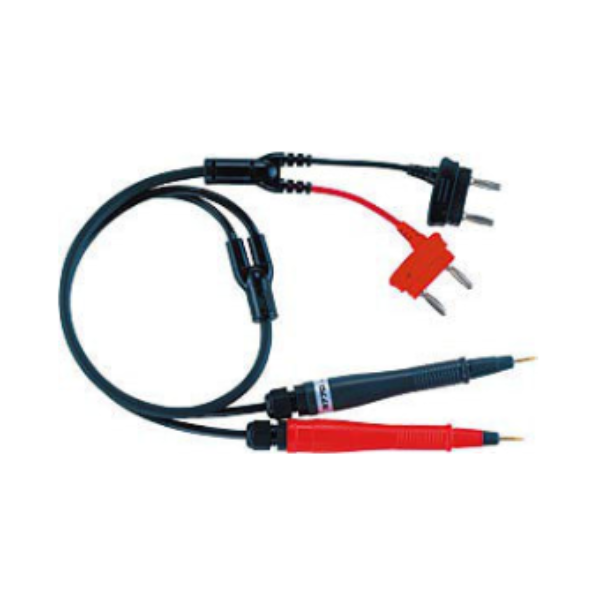

The Hioki - 3 A AC/DC Pin Type Lead shows compatibility with the Hioki 3540 Miliohm HiTester and the Hioki 3541 Resistance HiTester. It is suitable for measuring resistance and battery measurements. The 3 A AC/DC Pin Type Lead can also be used with the BATTERY HiTESTER BT3563. The Pin Type Lead has a four-terminal design. The Hioki - 3 A AC/DC Pin Type Lead is equipped with highly conductive contact pins to measure button cells with equal precision and accuracy.
Product specifications:
Brand - Hioki
Made in - Japan
Product - Pin Type Lead
Weight 4.0 ounces
Maximum rated voltage to earth: 33 Vrms or less, 46.7 Vp AC or less and 70 V DC or less
Maximum input current: AC/DC 3 A continuous
Operating temperature and humidity: 0°C to 40°C (32°F to 104°F), 80%RH or less
Storage temperature and humidity: -10°C to 50°C (14°C to 122°C), 80%RH or less
Key Features:
Waterproof covering
Good response time
