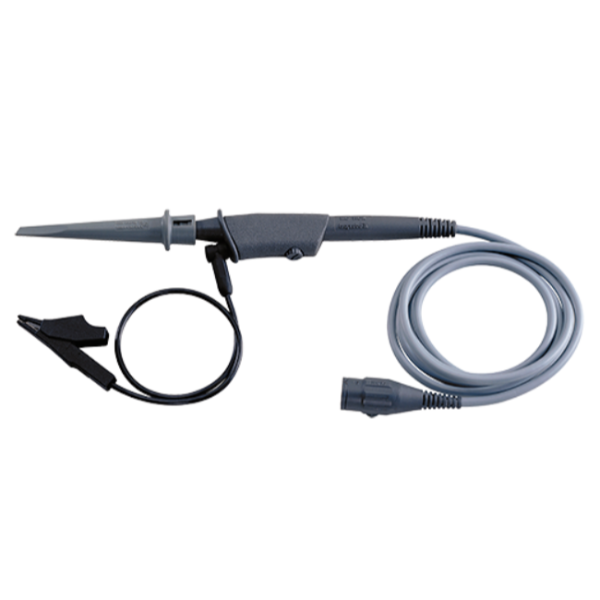

Hioki - 10:1 Test Probe Attenuates the input voltage to 1/10. The 10:1 Test Probe is designed to conform to IEC 61010 Safety Standards and has been carefully tested for safety before use (DUT). The probe's input capacitor can be reduced to lessen the load effect. As a result, it reduces the input voltage to one-tenth of its original value. The input unit determines the maximum rated voltage above ground. The Hioki - 10:1 Test Probe is made to be used with Hioki Memory HiCorder 8860/61.
Product Specifications:
Brand: Hioki
Origin: Japan
Model: 9665
No. of items: 1
Item weight- 226.796 gm
Size:1.5m
Material: Vinyl
Maximum input voltage: 500 kHz or less
Max. rated voltage to earth: 1000 V CAT II
Input Impedance: 10 Ohm
Input capacitance: 18 pF ±2 pF
Divider Resistance: 9M ohm +/- 1%
Frequency Characteristic: DC to 150 MHz
Compensation Adjustment Range: 15 pF to 45 pF0
Key Features:
Easy to use
Reliable
Conforms to IEC 61010 safety standard
