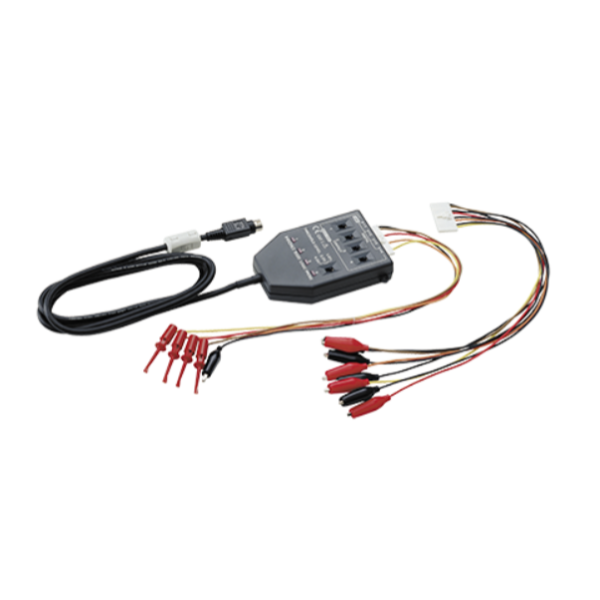

The Logic Probe detects high or low voltages and relays contact signals. It is a useful tool to measure digital circuits. It is a handheld pen-like probe with indicator lights to show the state of the line being probed. The Hioki 9327 - 4 V Logic Probe has 4 channels with common ground. It can be used directly to transmit a signal into the login circuits without removing the integrated circuit or breaking the circuits. It includes a switch between digital or contact output. The 4 V Logic Probe supports pulse widths as narrow as 100ns using high-speed response. It has three thresholds for digital input. It comes with a miniature connector. The Logic Probe connects to the logic input terminals of Hioki Memory HiCorders.
Product Specifications:
Brand: Hioki
Made In: Japan
Product: Logic Probe
Model: 9327
Digital Input Threshold: 1.4 V/ 2.5 V/ 4 V
Dimensions: 62 x 94 x 20 mm
Key Features:
Cost-effective
Long-lasting
Easy to use
