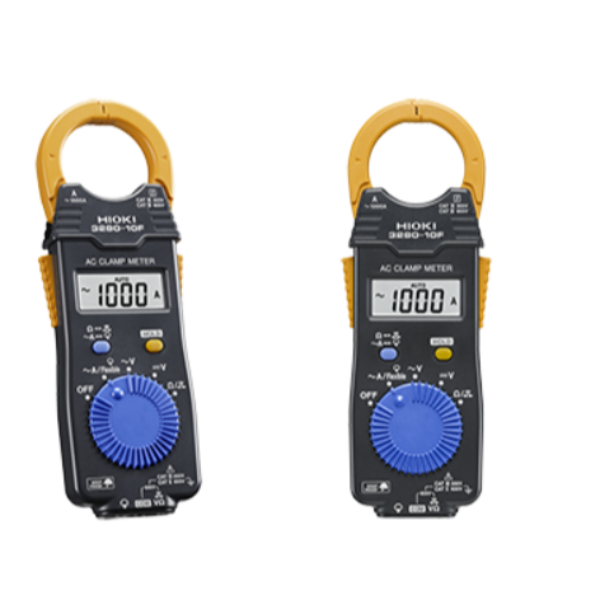

These Hioki - 1000 A Clamp-On Hi Tester is a handy electricians tool. The 1000 A Clamp-On Hi Tester primarily conducts AC current measurements. In addition, however, the Clamp-On Hi Tester can measure voltage and resistance measurement along with continuity check functionality. The Hioki - 1000 A Clamp-On Hi Tester has a compact and rugged design suitable for rough handling. The 1000 A Clamp-On Hi Tester uses an average rectified method for accurate measurement. In addition, the Clamp-On Hi Tester is provided with an optional flexible current sensor.
Product Specifications:
Brand: Hioki
Product: clamp-on hi tester
Model: 3280 10F
AC Current range: 41.99 to 1000 A, 3 ranges
DC Voltage range: 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt
AC Voltage range: 4.199 V to 600 V, 4 ranges
Resistance range: 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt
Core jaw diameter: 33 mm (1.30 in)
Key Features:
Suitable for conductor upto 60mm diameter
High anti-interference ability
Small phase angle error
