Buy Havells ZINNIA 2 - 0.5 HP, Single Phase Self Priming Monoblock Pump Online
Havells

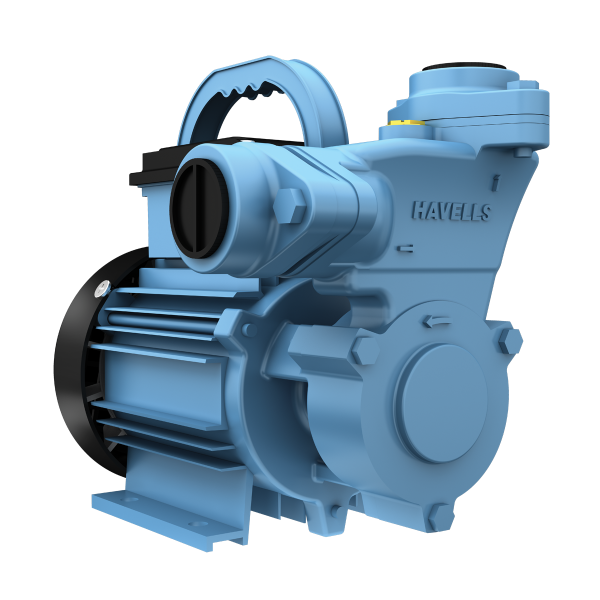

Havells ZINNIA 2 - 0.5 HP, Single Phase Self Priming Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Havells

Havells ZINNIA 2 - 0.5 HP, Single Phase Self Priming Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Havells - 0.5 HP, Single Phase Self Priming Monoblock Pump motors come with Insulation. The Insulation in the 0.5 HP, Single Phase Self Priming Monoblock Pump ensures that the motor doesn't burn. In addition, the Insulation makes sure that the Single Phase Self Priming Monoblock Pump works smoothly even at high temperatures. The Self Priming Monoblock Pump features Higher Suction Power. The Monoblock Pump provides high discharge in the operating Range. The premium quality pump castings of the 0.5 HP, Single Phase Self Priming Monoblock Pump ensure very slow rusting of the pump. The Self Priming Monoblock Pump also features IP-54 protection. In addition, the Single Phase Self Priming Monoblock Pump comes with Dual coated F class copper motor windings.

Product Specifications:

Brand: Havells

Cable Length: 0.3 m

Capacitor Run: 8 micro F

Country of Origin: India

The direction of Rotating: Anti-clockwise when viewed from the driving end

Model: ZINNIA 2

Motor Body: Graded Cast Iron

Motor Speed: 2900 RPM

Pipe Size: 25x25 mm

Discharge Range: 1900-450 LPH

Dynamically Balanced Rotor: Yes

Head Range: 6-21 m

Impeller: Forged Brass

Low Power Consumption: Yes

Maximum Working Pressure: 7 Kg /cm2

Power: 0.5 HP (0.37 kW)

Pump Casing: Cast iron

Voltage Operating Range: 180-240 V

Winding Type: Copper Winding

Key Features:

Energy Efficient

Long-Lasting

Rust-resistant

Product Specifications

GENERAL

Area of Applications:
Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
Brand:
Havells
Cable Length:
0.3 m
Capacitor Run:
8 micro F
Country of Origin:
India
Direction of Rotating:
Anti-clockwise when viewed from driving end
Discharge Range:
1900-450 LPH
Dynamically Balanced Rotor:
Yes
Head Range:
6-21 m
High Suction with Self Priming:
Upto 7.5 m
Impeller:
Forged Brass
Item Code:
MHPAMP0X50
Low Power Consumption:
Yes
Maximum Working Pressure:
7 Kg /cm2
Model:
ZINNIA 2
Motor Body:
Graded Cast Iron
Motor Speed:
2900 RPM
Motor Stator:
CRC prossed grade stampings
Operating Water Temperature:
Ambient temperature
Package Contents:
1 N pumpset, 1 N instruction manual, 1 N warranty card, 1 N Strainer
Pipe Size:
25x25 mm
Power:
0.5 Hp (0.37 kW)
Power supply cable:
Yes
Pump Casing:
Cast iron
Rated Frequency:
50 Hz
Series:
MMB Series
Shaft:
EN-8
Suitable for:
Single phase supply
Voltage Operating Range:
180-240 V
Warranty:
1 Year
Weight:
5.8 Kg
Winding Type:
Copper Winding
