Buy Havells V 1 - 1 Hp V Series Domestic Monoblock Pump Online

Havells V 1 - 1 Hp V Series Domestic Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

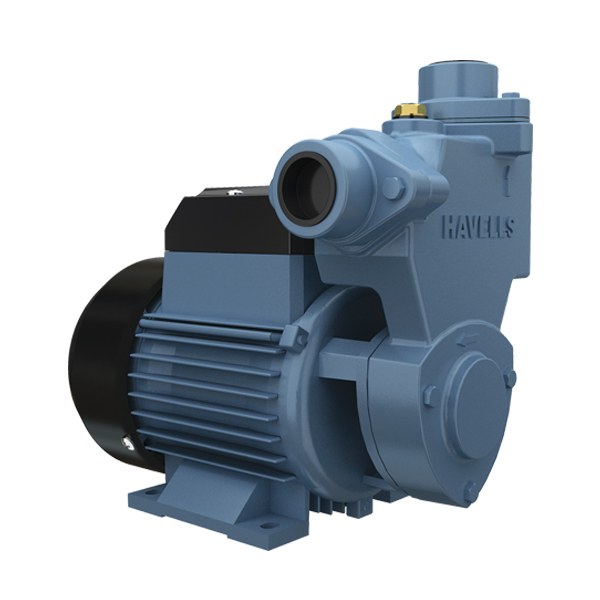

Havells V 1 - 1 Hp V Series Domestic Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Energy Efficient Motor. Motors are with F Class Insulation, which ensures that motor does't get burned and works smoothly even at high temperatures.
  • Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range.
Product Specifications

GENERAL

Brand:
Havells
Country of Origin:
India
Depth:
302 mm
Direction of Rotating:
Anti clockwise when viewed from driving end
Dynamically Balanced Rotor:
Yes
Height:
277 mm
High Suction with Self Priming:
Up to 8 metre
Impeller:
Forged brass
Low Power Consumption:
Yes
Maximum Working Pressure:
5.6 kg cm2
Model:
V 1
Motor Body:
High quality aluminium die casting
Motor Speed:
2900 RPM
Motor Stator:
Low watt loss silicon steel lamination
Operating Water Temperature:
Up to 65
Pipe Size:
25x25 mm
Power:
1 Hp, 0.75 kW
Pump Casing:
Graded Cast Iron
Rated Frequency:
50 Hz
Rated Input Current:
2.6 Amp
Shaft:
Stainless Steel SS-410
Suitable for:
Single Phase supply
Weight:
17 kg
Width:
200 mm
Winding Type:
Copper winding
