Buy Havells Shower 1 - 1HP, Single Phase Self Priming Monoblock Pump Online

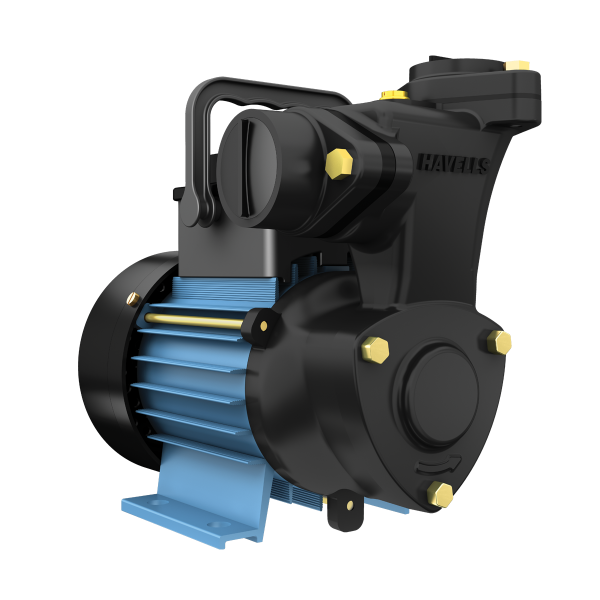

Havells Shower 1 - 1HP, Single Phase Self Priming Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Havells Shower 1 - 1HP, Single Phase Self Priming Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

A box of Havells - 1 HP, Single Phase Self Priming Monoblock Pump contains 1 pump set, 1 instruction manual, and 1 Strainer. The Single-Phase Self Priming Monoblock Pump makes sure that the pump runs smoothly even in extremely warm temperatures. Self-Priming Monoblock Pump has potent suction and discharge ability. This Monoblock Pump is self-priming. The impeller of 1 HP, Single Phase Self Priming Monoblock Pump is forged in brass. Havells - 1 HP, Single Phase Self Priming Monoblock Pump draws its power from a corded electric source. 1 HP, Single Phase Self Priming Monoblock Pump consists of ‘F’ class insulation. The high-grade pump casting of the Self Priming Monoblock Pump protects it from deterioration. The strong metal input ensures that the Monoblock Pump remains resistant to damage and can be used long.

Product Specifications:

Brand: Havells

Made In: India

Product: Self Priming Monoblock Pump

Weight: 8 kg 100 g

Dimensions: 27.3 x 17.8 x 23.3 cm

Impeller: Forged brass

Motor insulation: F class

Motor winding: Dual coated F Class copper

Pump seal: Quality mechanical seal

Pump casting: High-Grade

Pump Castings (FG-200 grade)

Pump shaft: EN-8 Pump Shaft

Material: metal

Power source: Corded Electric

Key features:

Strong coating

Corded electric power source

Self-priming

Potent suction

Free from corrosion

Resistant to damage

Brass impeller

Product Specifications

GENERAL

Area of Applications:
Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
Brand:
Havells
Capacitor Run:
15 micro F
Country of Origin:
India
Direction of Rotating:
Anti-clockwise when viewed from driving end
Discharge Range:
2700-450 LPH
Dynamically Balanced Rotor:
Yes
Head Range:
6-34 m
High Suction with Self Priming:
Upto 7.5 m
Impeller:
Forged Brass
Item Code:
MHPASJ1X00
Low Power Consumption:
Yes
Maximum Working Pressure:
3.4 Kg /cm2
Model:
Shower-1
Motor Body:
High-quality Extruded aluminium body
Motor Speed:
2900 RPM
Motor Stator:
Low Watt loss silicon steel lamination
Operating Water Temperature:
Ambient temperature
Package Contents:
1 N pumpset, 1 N instruction manual, 1 N warranty card, 1 N Strainer
Pipe Size:
25x25 mm
Power:
1 Hp (0.75 kW)
Power supply cable:
Yes
Pump Casing:
Cast iron
Rated Frequency:
50 Hz
Series:
MMB Series
Shaft:
Carbon Steel Pump Shaft
Suitable for:
Single phase supply
Voltage Operating Range:
180-240 V
Warranty:
1 Year
Weight:
8.1 Kg
Winding Type:
Copper Winding
