Buy Havells S1.5 W - 1.5 HP, Single Phase Self Priming Monoblock Pump Online

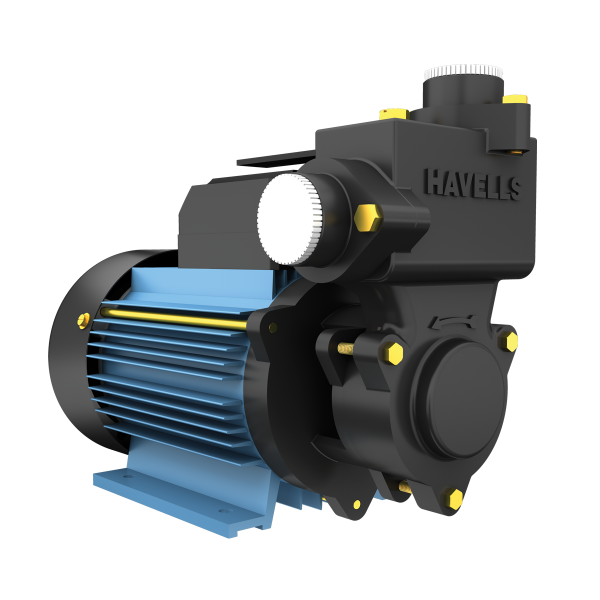

Havells S1.5 W - 1.5 HP, Single Phase Self Priming Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Havells S1.5 W - 1.5 HP, Single Phase Self Priming Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Havells - 1.5 HP, Single Phase Self Priming Monoblock Pump body, is designed with cast iron, designed delivery ports, and flanged suction. The 1.5 HP, Single Phase Self Priming Monoblock Pump is very reliable as it features copper winding. In addition, the Single Phase Self Priming Monoblock Pump also features Stainless Steel Shaft (SS-410) and IP-65 protection. The Self Priming Monoblock Pump comes with an In-built Thermal Over Load Protector. In addition, there is F Class Insulation in the Monoblock Pump, ensuring that the motor doesn’t get burned. The Havells - 1.5 HP, Single Phase Self Priming Monoblock Pump works smoothly even at high temperatures.

Product Specifications:

Brand: Havells

Suction: High with Self Priming: Upto 8 m

Power Rating: 1.1 kW

Pipe Size: 25x25 mm

Suitable For: Single phase supply

Class of insulation: Motor: F

Working Pressure: 5.6 kg/cm²

Voltage: 180-240 V

Shaft: Stainless Steel

Motor Power:1.5 HP

Discharge Range:4700 lph

Speed: 2900 rpm

Motor Body: Aluminium Die Casting

Winding Type: Copper

Model: S-1.5W

Frequency: 50 Hz

Impeller: Forged Brass

Pump Casing: Cast Iron

Key Features:

Optimal power consumption

High performance

High suction power

Product Specifications

GENERAL

Area of Applications:
Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
Brand:
Havells
Capacitor Run:
36 micro F
Country of Origin:
India
Direction of Rotating:
Anti-clockwise when viewed from driving end
Discharge Range:
4700-1400 LPH
Dynamically Balanced Rotor:
Yes
Head Range:
18-57 m
High Suction with Self Priming:
Upto 8 m
Impeller:
Forged Brass
Item Code:
MHPASJ1X50
Low Power Consumption:
Yes
Maximum Working Pressure:
5.6 Kg /cm2
Model:
S1.5 W
Motor Body:
High-quality aluminium die casting
Motor Insulation Class:
Class F
Motor Speed:
2900 RPM
Motor Stator:
CRC prossed grade stampings
Operating Water Temperature:
Ambient temperature
Package Contents:
1 N pumpset, 1 N instruction manual, 1N warranty card, 1 N Strainer
Pipe Size:
25x25 mm
Power:
1.5 Hp (1.10 kW)
Power supply cable:
Yes
Pump Casing:
Cast iron
Rated Frequency:
50 Hz
Series:
MMB Series
Shaft:
Stainless Steel (SS-410)
Suitable for:
Single phase supply
Voltage Operating Range:
180-240 V
Warranty:
1 Year
Weight:
16.7 Kg
Winding Type:
Copper Winding
