Buy Havells S1 - 1 HP, Single Phase Self Priming Monoblock Pump Online

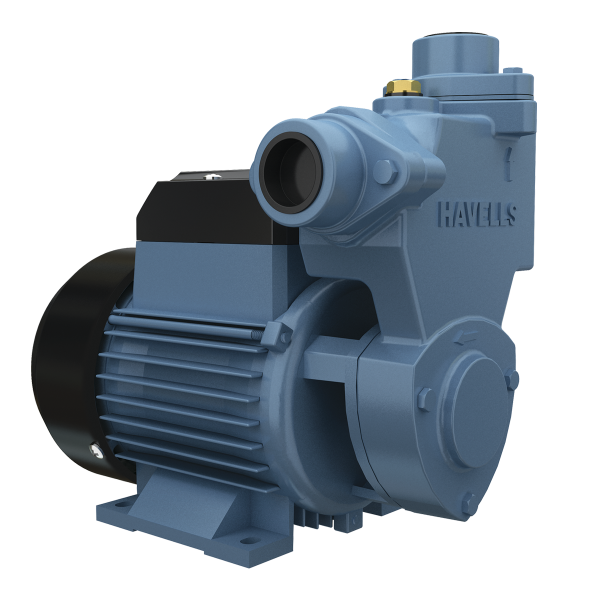

Havells S1 - 1 HP, Single Phase Self Priming Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Havells S1 - 1 HP, Single Phase Self Priming Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Single Phase Self Priming Monoblock Pump is a horizontally operating pump. Havells - 1 HP, Single Phase Self Priming Monoblock Pump consumes minimal power and a thermal overload protector. Single Phase Self Priming Monoblock Pump assists pressure booster services and can be used at homes and industries to supply water. Self-Priming Monoblock Pump should never be used on a dry surface. The instruction manual available with the package provides an absolute understanding of the working of this Monoblock Pump. This lightweight and strategically designed Single Phase Self Priming Monoblock Pump can be easily installed within mins. Havells - 1 HP, Single Phase Self Priming Monoblock Pump has modern additions such as ‘F’ class insulation, high suction power and more. The Aluminium motor body of the Self Priming Monoblock Pump ensures that the product remains resistant to corrosion.

Product Specifications:

Brand: Havells

Made In: India

Product: Self Priming Monoblock Pump

Power: 0.75kW (1HP)

Head range: 6-56 m

Flow range: 70.8-12.1 LPM

Inlet/outlet: 25 X 25 MM

Water temperature: up to 60-degree celsius

Self-priming: up to 8 m

Size: 25x28

Impeller: forged brass

Pump casting: High-Grade Pump Casting (FG-200 grade)

Mechanical seal: silicon carbide-graphite

Shaft: Stainless Steel

Maximum working pressure: 5.5kg/cm2

Power cable length: 1 meter / 5 meter

Key features:

Varied usage

Corrosion-free

Light weight

Easy installation

Horizontal operation

Product Specifications

GENERAL

Area of Applications:
Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
Brand:
Havells
Capacitor Run:
22.5 micro F
Country of Origin:
India
Direction of Rotating:
Anti-clockwise when viewed from driving end
Discharge Range:
4200-640 LPH
Dynamically Balanced Rotor:
Yes
Head Range:
6-56 m
High Suction with Self Priming:
Upto 8 m
Impeller:
Forged Brass
Item Code:
MHPASS1X00
Low Power Consumption:
Yes
Maximum Working Pressure:
5.6 Kg /cm2
Model:
S1
Motor Body:
High-quality aluminium die casting
Motor Insulation Class:
Class F
Motor Speed:
2900 RPM
Motor Stator:
Low watt loss silicon steel lamination
Operating Water Temperature:
Upto 65 Degree C
Package Contents:
1 N pump set, 1 N power cord of 1 m length, 1 N instruction manual, 1 N warranty card
Pipe Size:
25x25 mm
Power:
1 Hp (0.75 kW), 5.6 A
Power supply cable:
Yes
Pump Casing:
Graded Cast iron
Rated Frequency:
50 Hz
Series:
MMB Series
Shaft:
Stainless Steel (SS-410)
Suitable for:
Single phase supply
Voltage Operating Range:
180-240 V
Warranty:
1 Year
Weight:
16.7 Kg
Winding Type:
Copper Winding
