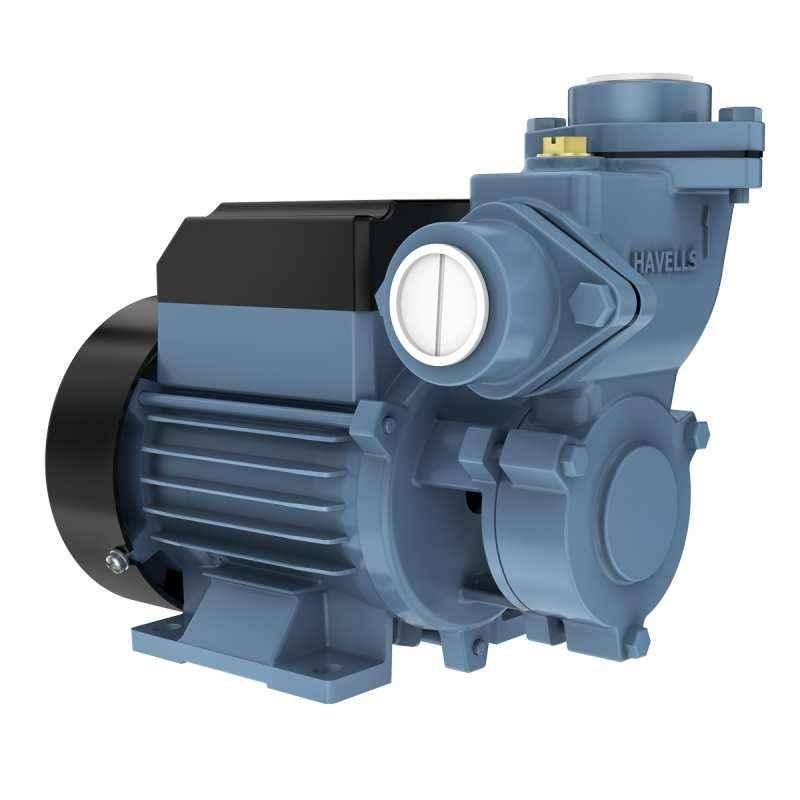

Havells MX2 - 0.5 HP, Single Phase Self Priming Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Havells MX2 - 0.5 HP, Single Phase Self Priming Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

A single-phase centrifugal pump with IP 55 protection also comes with class 'B' insulation properties. It is equipped with an in-built thermal overload protector that adds to its longevity and better work-life. The impeller is made of forged brass, and the motor is designed for low power consumption. Pipe size of 25x25 mm with balanced motor for trouble-free operation. Manufactured by Havells and made in India, it also has an anti-friction bearing on both sides for a longer duration.

Product specifications:

Single-phase

IP55 protection

EN-8 shaft

Copper winding

MX 2 model

Made in India

Product Specifications

GENERAL

Applications:
Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
Brand:
Havells
Country of Origin:
India
Direction of Rotating:
Anti-clockwise when viewed from driving end
Dynamically Balanced Rotor:
Yes
Gross Weight:
7.05 Kg
High Suction with Self Priming:
up to 7.5 m
Impeller:
Forged brass
In Built Thermal Overload Protector:
Yes
Low Power Consumption:
Yes
Maximum Working Pressure:
2.7 kg / cm2
Model:
MX2
Motor Body:
High-quality aluminium extruded body
Motor Insulation Class:
Class F
Motor Speed:
2900 RPM
Motor Stator:
Low watt loss silicon steel lamination
Operating Water Temperature:
Upto 65 Degree C
Package Contents:
1 N pump set, 1 N instruction manual, 1 N warranty card
Pipe Size:
25x25 cm
Power:
0.37 kW (0.5 HP)
Power supply cable:
Yes
Pump Casing:
Graded Cast iron
Rated Frequency:
50 Hz
Series:
MX Series
Shaft:
EN-8
Suitable for:
Single phase supply
Voltage Operating Range:
180-240 V
Warranty:
1 Year
Winding Type:
Copper winding
