Buy Havells MX1 - 1HP, Single Phase Self Priming Monoblock Pump Online

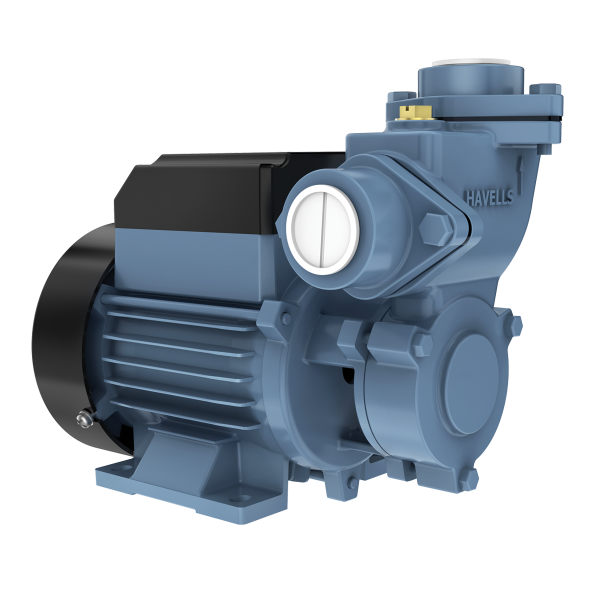

Havells MX1 - 1HP, Single Phase Self Priming Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Havells MX1 - 1HP, Single Phase Self Priming Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Havells - 1 HP, Single Phase Self Priming Monoblock Pump is structured to consume less power. The 1 HP, Single Phase Self Priming Monoblock Pump is suited to working in temperatures upto 50 degrees Celcius. The Single Phase Self Priming Monoblock Pump provides comprehensive underground water pumping solutions. The Self Priming Monoblock Pump features high suction power with self-priming, up to 7.5m. The premium quality of the Monoblock Pump ensures that the Pump rusts slowly, extending the Self Priming Monoblock Pump’s life by reducing corrosion from the wear and tear. The Stainless Steel Shaft of the Havells - 1 HP, Single Phase Self Priming Monoblock Pump protects the shaft from rusting from constant contact with hard water.

Product Specifications:

Brand: Havells

Power Rating: 0.75 kW

Phase: Single Phase

Motor Body: High-quality aluminium extruded body

Pipe Size: 25x25 mm

Motor Stator: Low-watt loss silicon steel lamination

Winding: Copper Winding

Protection Class: IP-55

Rotation: Anti-clockwise

Series: MX

Shaft: EN-8

Motor Power: 1 HP

Impeller: Forged Brass

Pump Casing: Graded Cast Iron

Key Features:

High suction power

Energy-efficient motor

In-built Thermal Overload Protector

Product Specifications

GENERAL

Applications:
Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
Brand:
Havells
Country of Origin:
India
Direction of Rotating:
Anti-clockwise when viewed from driving end
Dynamically Balanced Rotor:
Yes
Gross Weight:
10.4 Kg
High Quality Mechanical Seal:
Yes
High Suction with Self Priming:
up to 7.5 m
Impeller:
Forged brass
In Built Thermal Overload Protector:
Yes
Low Power Consumption:
Yes
Maximum Working Pressure:
3.8 kg / cm2
Model:
MX1
Motor Body:
High-quality aluminium extruded body
Motor Insulation Class:
Class F
Motor Speed:
2900 RPM
Motor Stator:
Low watt loss silicon steel lamination
Operating Water Temperature:
Upto 65 Degree C
Package Contents:
1 N pump set, 1 N instruction manual, 1 N warranty card
Pipe Size:
25x25 cm
Power:
0.75 kW (1.0 HP)
Power supply cable:
Yes
Pump Casing:
Graded Cast iron
Rated Frequency:
50 Hz
Series:
MX Series
Shaft:
EN-8
Suitable for:
Single phase supply
Voltage Operating Range:
180-240 V
Warranty:
1 Year
Winding Type:
Copper winding
