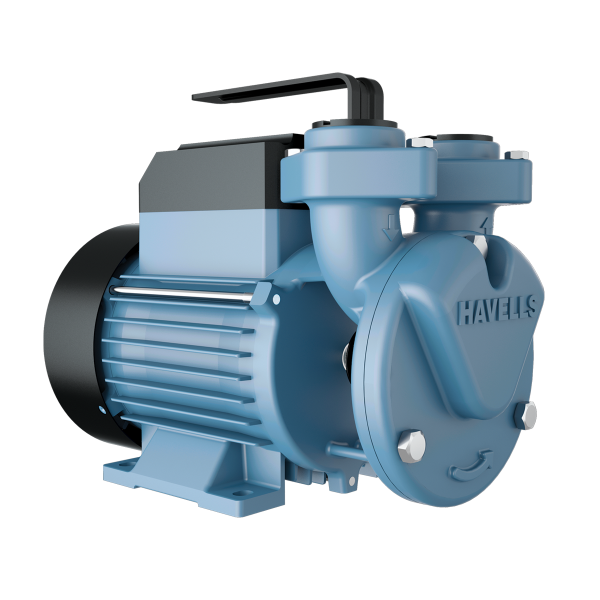

Havells HS2 - 0.5 HP, Single Phase Self Priming Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Havells

Havells HS2 - 0.5 HP, Single Phase Self Priming Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Havells - 0.5 HP, Single Phase Self Priming Monoblock Pump is equipped with an energy-efficient motor that operates at high temperatures. As a result, the 0.5 HP, Single Phase Self Priming Monoblock Pump is appropriate for a single phase. The Single Phase Self Priming Monoblock Pump features a motor body of High-quality aluminium casting. In addition, the Self Priming Monoblock Pump also features copper winding making the Monoblock Pump very reliable if there are any voltage fluctuations, and the product gives high motor efficiency. You can use the Havells - 0.5 HP, Single Phase Self Priming Monoblock Pump as an outdoor application. The Monoblock Pump is protected from dust particles due to the design and structure of the product. The Self Priming Monoblock Pump motor is safe even from water splashes and burning.

Product Specifications:

Brand: Havells

Power Rating: 0.37 kW

Phase: Single Phase

Motor Body: High-quality aluminium extruded body

Pipe Size: 25x25 mm

Motor Stator: Low-watt loss silicon steel lamination

Winding: Copper Winding

Protection Class: IP-55

The direction of Rotating: Anti-clockwise

Series: HS

Shaft: Stainless Steel (SS-410)

Motor Power: 0.5 HP

Impeller: Forged Brass

Pump Casing: Graded Cast Iron

Key Features:

Compact Design

High-grade pump castings

Single-phase pump

In-built thermal overload protector

Product Specifications

GENERAL

Area of Applications:
Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
Brand:
Havells
Capacitor Run:
15 micro F
Country of Origin:
India
Direction of Rotating:
Anti-clockwise when viewed from driving end
Discharge Range:
3200-550 LPH
Dynamically Balanced Rotor:
Yes
Head Range:
6-30 m
High Suction with Self Priming:
Upto 8 m
Impeller:
Forged Brass
Item Code:
MHPAVE0X50
Low Power Consumption:
Yes
Maximum Working Pressure:
3 Kg /cm2
Model:
HS2
Motor Body:
High-quality aluminium die casting
Motor Speed:
2900 RPM
Motor Stator:
CRC prossed grade stampings
Operating Water Temperature:
Upto 65 Degree C
Package Contents:
1 N pump set,1 N instruction manual, 1 N warranty card
Pipe Size:
25x25 mm
Power:
0.5 Hp (0.37 kW)
Power supply cable:
Yes
Pump Casing:
Graded Cast iron
Rated Frequency:
50 Hz
Series:
MMB Series
Shaft:
Stainless Steel (SS-410)
Suitable for:
Single phase supply
Voltage Operating Range:
180-240 V
Warranty:
1 Year
Weight:
10.1 Kg
Winding Type:
Copper Winding
