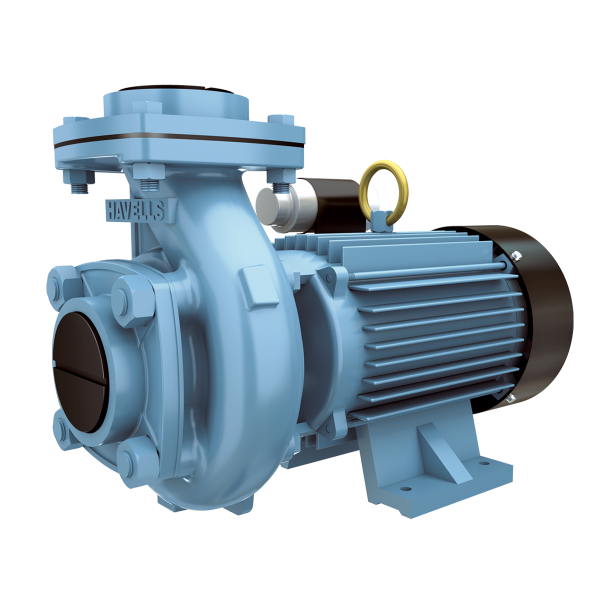

Havells CMP05 - 0.5 HP, Single Phase Centrifugal Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Havells CMP05 - 0.5 HP, Single Phase Centrifugal Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Havells - 0.5 HP, Single Phase Centrifugal Pump comes with an instruction manual for ease of installation. 0.5 HP, Single Phase Centrifugal Pump runs smoothly even in high temperatures. The Centrifugal Pump consists of ‘F, class insulation. Single Phase Centrifugal Pump has suction power of up to 7.5 m. High-quality coating over the Centrifugal Pump ensures slower rusting and longer life. The application of 0.5 HP, Single Phase Centrifugal Pump is varied - watering gardens, irrigating fields, domestic and industrial usage. This Havells - 0.5 HP, Single Phase Centrifugal Pump is mostly available in grey colour. Single Phase Centrifugal Pump has carbon and ceramics graphite mechanical seal. The logical design of 0.5 HP, Single Phase Centrifugal Pump ensures that the impellers are well balanced.

Product Specifications:

Brand: Havells

Made In: India

Product: Centrifugal Pump

Capacitor run: 20 micro F

Head range: 6 - 14 m

Impeller: Forged brass

Maximum working pressure: 1.4 Kg /cm2

Motor body: High-pressure die-cast CI

Motor speed: 2900 RPM

Motor stator: Low watt loss silicon steel lamination

Temperature: Ambient water temperature

Pipe size: 40 x 40 mm

Power: 0.5 Hp (0.37 kW)

Pump casing: Cast iron

Frequency: 50 Hz

Shaft: Stainless steel

Voltage: 180 - 240 V

Weight: 16.2 kg

Winding type: Copper Winding

Key features:

Slow rusting

Copper winding

Varied application

Long life

Grey colour

Logical design

Balanced impellers

Product Specifications

GENERAL

Area of Applications:
Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
Brand:
Havells
Capacitor Run:
20 micro F
Country of Origin:
India
Direction of Rotating:
Anti-clockwise when viewed from driving end
Discharge Range:
14100-4050 LPH
Dynamically Balanced Rotor:
Yes
Head Range:
6-14 m
High Suction with Self Priming:
Upto 7.5 m
Impeller:
Forged Brass
Item Code:
MHPQCB0X50
Low Power Consumption:
Yes
Maximum Working Pressure:
1.4 Kg /cm2
Model:
CMP05
Motor Body:
High pressure die-cast CI
Motor Speed:
2900 RPM
Motor Stator:
Low watt loss silicon steel lamination
Operating Water Temperature:
Ambient temperature
Package Contents:
1 N pump set, 1 N instruction manual, 1 N warranty card
Pipe Size:
40x40 mm
Power:
0.5 Hp (0.37 kW)
Power supply cable:
Yes
Pump Casing:
Cast iron
Rated Frequency:
50 Hz
Series:
CMB Series
Shaft:
Stainless steel (SS-410)
Suitable for:
Single phase supply
Voltage Operating Range:
180-240 V
Warranty:
1 Year
Weight:
16.2 Kg
Winding Type:
Copper Winding
