Buy Havells AL2 - 0.5 HP, Single Phase Self Priming Monoblock Pump Online

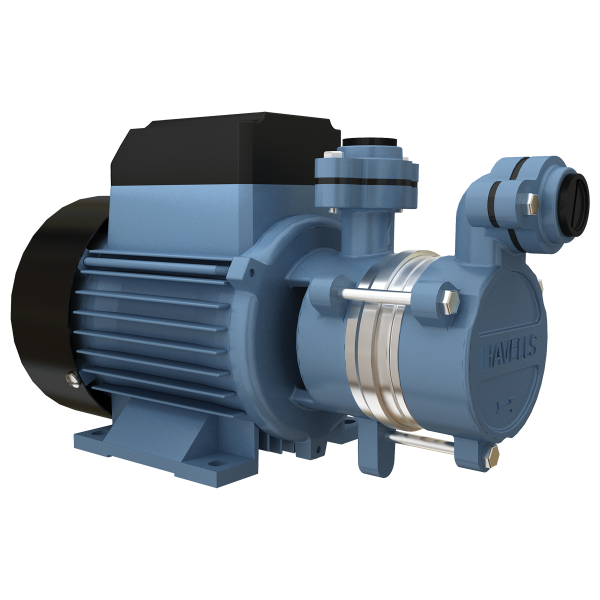

Havells AL2 - 0.5 HP, Single Phase Self Priming Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Havells AL2 - 0.5 HP, Single Phase Self Priming Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Energy Efficient Motor.
  • Pump Performance.
  • Pumps have the Higher Suction Power.
  • Give High Discharge in its Operating Range.
Product Specifications

GENERAL

Area of Applications:
Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
Brand:
Havells
Capacitor Run:
10 micro F
Country of Origin:
India
Direction of Rotating:
Anti-clockwise when viewed from driving end
Discharge Range:
1600-270 LPH
Dynamically Balanced Rotor:
Yes
Head Range:
3-30 m
High Suction with Self Priming:
Upto 8 m
Impeller:
Forged Brass
Item Code:
MHPAAE0X50
Low Power Consumption:
Yes
Maximum Working Pressure:
3 Kg /cm2
Model:
AL2
Motor Body:
High-quality aluminium die casting
Motor Insulation Class:
Class F
Motor Speed:
2900 RPM
Motor Stator:
Low watt loss silicon steel lamination
Operating Water Temperature:
Upto 65 Degree C
Package Contents:
1 N pump set, 1 N power cord of 1 m length, 1 N instruction manual, 1 N warranty card
Pipe Size:
13x13 mm
Power:
0.5 Hp (0.37 kW)
Power supply cable:
Yes
Pump Casing:
Graded Cast iron
Rated Frequency:
50 Hz
Series:
A Series
Shaft:
Stainless steel (SS-410)
Suitable for:
Single phase supply
Voltage Operating Range:
180-240 V
Warranty:
1 Year
Weight:
8.25 Kg
Winding Type:
Copper Winding
