Buy Havells A 1 - 1.0 Hp A Series Domestic Monoblock Pump Online
Havells

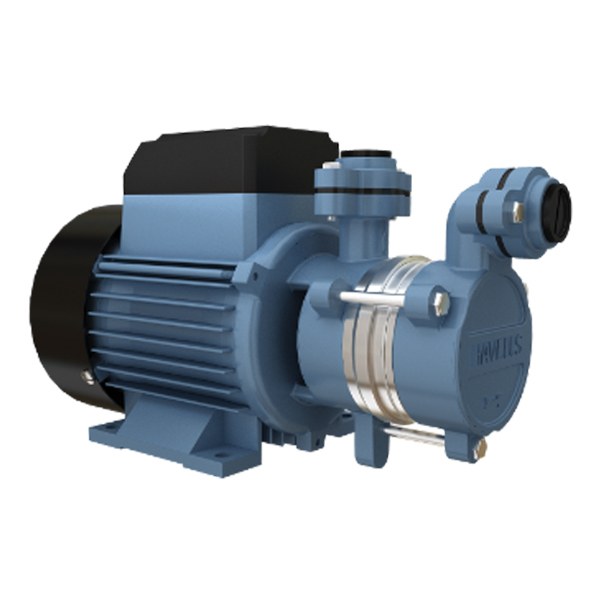

Havells Aquaflow A1 - 1 HP, Single Phase Self Priming Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Havells

Havells Aquaflow A1 - 1 HP, Single Phase Self Priming Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Havells - 1 HP, Single Phase Self Priming Monoblock Pump includes 1 N pump set, 1 N power cord of 1 m length, 1 N instruction manual and 1 N warranty card. The 1 HP, Single Phase Self Priming Monoblock Pump has ‘F’ class insulation, allowing it to operate effectively even in increased temperatures. The 1 HP, Single Phase Self Priming Monoblock Pump has strong suction power and discharging ability. The quality casting of the Self Priming Monoblock Pump ensures minimum rusting, wear and tear of the product. The impeller is made from forged brass, making it very strong and increasing Monoblock pump performance. The dual-coated copper winding protects the 1 HP, Single Phase Self Priming Monoblock Pump from burnout. Havells - 1 HP, Single Phase Self Priming Monoblock Pump is protected from dust particles and is waterproof (up to certain levels). The Single-Phase Self Priming Monoblock Pump can easily be used in tanks, hospitals, industries, apartments and the likes. The motor of the Single-Phase Self Priming Monoblock Pump rotates in an anti-clockwise direction. 1 HP, Single Phase Self Priming Monoblock Pump has built-in thermal protection from overload and a balanced rotor. Havells - 1 HP, Single Phase Self Priming Monoblock Pump provides single-phase supply.

Product Specifications:

Brand: Havells

Made In: India

Product: Self Priming Monoblock Pump

Impeller: Forged Brass

Max work pressure: 3.9 kg/cm sq.

Motor body: High-quality aluminium die casting

Motor Insulation: Class ‘F’

Motor speed: 2900 RPM

Motor stator: Low Watt loss silicon steel lamination

Power: 0.75 kW (1.0 HP)

Input current: 4.2 A

Frequency: 50 Hz

Pump casting: Graded Cast Iron / SS

Shaft: Stainless Steel

Voltage: 180-240 V

Weight: 12.5 Kg

Winding Type: Copper

Key features:

Slow rusting

Dust-free

Thermal protection

‘F’ class insulation

Copper winding

High performance

Protected from burnout

Product Specifications

GENERAL

Applications:
Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
Brand:
Havells
Country of Origin:
India
Direction of Rotating:
Anti-clockwise when viewed from driving end
Discharge Range:
2450 -535 LPH
Dynamically Balanced Rotor:
Yes
High Quality Mechanical Seal:
Yes
High Suction with Self Priming:
up to 8 m
Impeller:
Forged brass
In Built Thermal Overload Protector:
Yes
Low Power Consumption:
Yes
Maximum Working Pressure:
3.9 kg / cm2
Model:
Aquaflow A1
Motor Body:
High-quality aluminium die casting
Motor Insulation Class:
Class F
Motor Speed:
2900 RPM
Motor Stator:
Low Watt loss silicon steel lamination
Operating Water Temperature:
up to 65 Degree C
Package Contents:
1 N pump set, 1 N power cord of 1 m length, 1 N instruction manual, 1 N warranty card
Pipe Size:
25x25 cm
Power:
0.75 kW (1.0 HP)
Power supply cable:
Yes
Pump Casing:
Graded Cast Iron / SS
Rated Frequency:
50 Hz
Rated Input Current:
4.2 A
Series:
A Series
Shaft:
Stainless Steel (SS-410)
Suitable for:
Single phase supply
Voltage Operating Range:
180-240 V
Warranty:
1 Year
Weight:
12.5 Kg
Winding Type:
Copper winding
