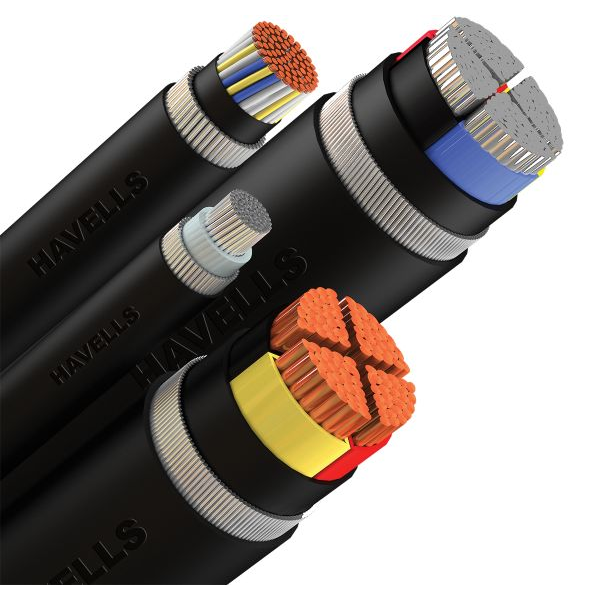

Havells - 16 Sq mm, 4 Core Copper Armoured Low Tension Power Cable has an insulation thickness of 0.70 mm. This 16 sq mm, 4 Core Copper Armoured Low Tension Power Cable has low dialectic loss and a high short circuit rating. The company regularly tests this 4 Core Copper Armoured Low Tension Power Cable during manufacturing to maintain quality. This Copper Armoured Low Tension Power Cable is available in the colour black. The company follows the standard- IS:7098 to manufacture this Havells - 16 Sq mm, 4 Core Copper Armoured Low Tension Power Cable.
Product Specifications:
Brand: Havells
Product Type: Armoured Low Tension Power Cable
Type: Armoured Low Tension
Number of Products: 1
Country of Origin: India
Colour: Black
Material: Copper
Number of Cores: 4
Standard: IS: 7098
Size: 16 Sq
Number of Strand in Conductor: 6
Nominal Insulation Thickness: 0.70 mm
Nominal Armour Strip Dimension: 4 x 0.80 mm
Approximate Overall Diameter of Cable: 20 mm
Minimum Inner Sheath Thickness: 0.30 mm
Approximate Weight of Cable: 1000 Kg/Km
Insulation Material: XLPE
Cable Type: 2XFY
Length: 100 mm
Outer Sheath: PVC
Key Features:
This Low Tension Power Cable uses XLPE insulation material.
This Low Tension Power Cable offers high insulation resistance.
