Buy Greenbit Dactyscan 84C - Fingerprint Scanner with CMI BMT-20 Binoculars Type Dual Iris Imager (Combo) Online
Greenbit

Greenbit Aadhar Kit (Dactyscan 84C Fingerprint Scanner & CMITech BMT20 Dual Iris Scanner Combo)


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Kit
OR
Reach Us At +91-9243011081
Greenbit

Greenbit Aadhar Kit (Dactyscan 84C Fingerprint Scanner & CMITech BMT20 Dual Iris Scanner Combo)

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

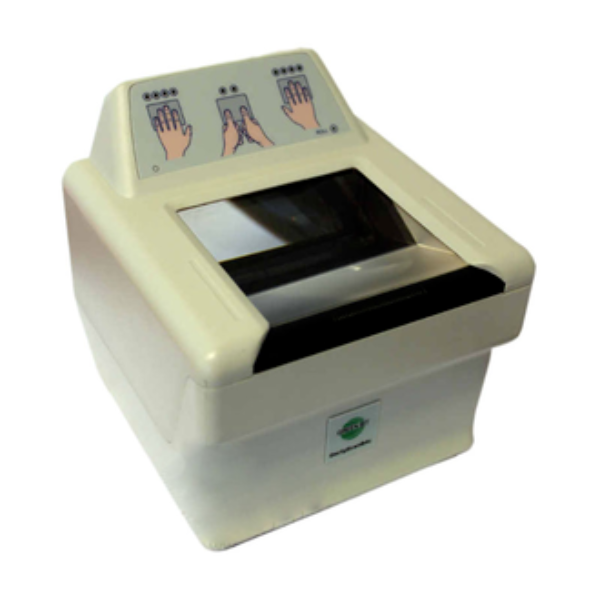

Greenbit Dactyscan 84C - Fingerprint Scanner – It is an optical live fingerprint reader with a large plate. The device is used to capture 4 slaps and 2 thumb fingerprints. Thus, it can collect all fingerprints, both single rolled and flat type using the 4+4+2 method. Greenbit Dactyscan works with automatic sequence checking and rolled fingerprint capturing and segmentation. It has a feature of the correct position and slaps completeness check as well. Some of its other functionalities include slide detection for flat prints, elimination of latent prints and automatic acquisition start and stop option. The halo elimination properties help to remove the halo present due to moisture fingerprints during acquisition. The image quality checking feature does the dynamic estimation of fingerprint image quality during the scanning process. The Anti-fake Lite option differentiates between actual human finger patterns and other surfaces with relief structures. The finger allocation check analyses the presence of finger core and basic flows. This fingerprint scanner is certified by the FBI and compliant with ANSI/ISO/IEC standards. Thus, it is approved for Aadhar enrolment projects, Police and AFIS projects and passport offices in India, and latent prints' elimination.

Features:

Rapid image acquisition, efficiency and reliability

Compact in size and light in weight

Seamless data transfer to the card encoding engine

Spoofing and liveness detection to detect fake fingerprints

FBI certified WSQ compression, formats available are JPEG and JPEG2000

  • Ideal for national and civil ID programs
  • Enrolment of non-acclimated subjects including children to 5 years of age
  • Lightweight and robust with IP64 rating
  • Powered from USB 2.0 connection
  • Usable in bright sunlight conditions
Product Specifications

GENERAL

Acquisition Speed:
> 28 fps for slap (Preview mode) > 25 fps for rolled
Brand:
Greenbit
Certifications:
CE, FCC, RoHS, KCC and ISO 60950-1
Country of Origin:
India
Depth of Field:
30 mm
Dimensions:
219x161x58 mm
Durability:
IP64 intrusion prevention standard
External LED indications for operator assisted positioning:
Red: Device position is too high, Blue: Device position is too low, Green: Device position is OK, White: Image capture in progress
Eye safety standard:
IEC 62471, IEC 60825-1
Flat Fingers Scanning Area:
3.2x3.0 inch
Humidity:
10 to 90% RH, non-condensing
Image output:
Meets or exceeds ISO 19794-6
Image Quality (Standards Compliance):
FBI IAFIS IQS App. F ANSI/NIST-ITL 1-2007/2011 ANSI/NIST-ITL 1-2000 ANSI/NIST-ITL 1-2000 Interpol Implementation ISO/IEC FCD 19794-4
Image Resolution:
500 dpi, 256 gray
Image Size:
1600 x 1500 pixels (SLAP) 800 x 750 pixels (ROLLED)
Inter-pupillary distance covered:
40 to 90 mm
Interface:
USB 2.0 High Speed
Internal LED for pupil contraction:
Broadband visible (white)
IP Rating:
IP54
IR illumination for iris imaging:
Dual LED: wavelengths of 850 nm nominal (-60
Iris image pixel resolution:
640 x 480 pixels
LED Interface:
Yes
Model:
Dactyscan 84C
Mounting:
Ready to be installed on a counter top
MTF / spatial resolution:
Exceeds 4.0 lp/mm @ > 60% contrast
Operating System:
Windows, Linux, Android
Operating temperature:
0-50 Degree C
Operating Temperature Range:
0 to 50 Degree C
Optical path distance:
350 to 380 mm
OS compatibility:
Windows 7, 8, 8.1 and 10, both 32 and 64 bit versions Linux Ubuntu 12.04, 14.04 and 16.04 LTS Android 4.0 and above
PC hardware requirements:
PC/xX86 platform: Intel® Atom™ or above processor ARM: Cortex A9 quad core processor
Pixel resolution:
18.4 to 20 pixels/mm
Platen Scanning Window:
3.2x3.2 inch
Power:
USB 2.0 (500 mA at 5V)
Rolled Fingers Scanning Area:
1.6x1.5 inch
Storage Temperature:
-20 to 50 Degree C
Time of capture:
Typically around 0.5 second, from time of head placement
Weight:
680 grams
