Buy {[en]:GIC SM500 - 240 VAC, Selectable Under/Over Voltage Monitoring Device (MD71B9) Online
GIC

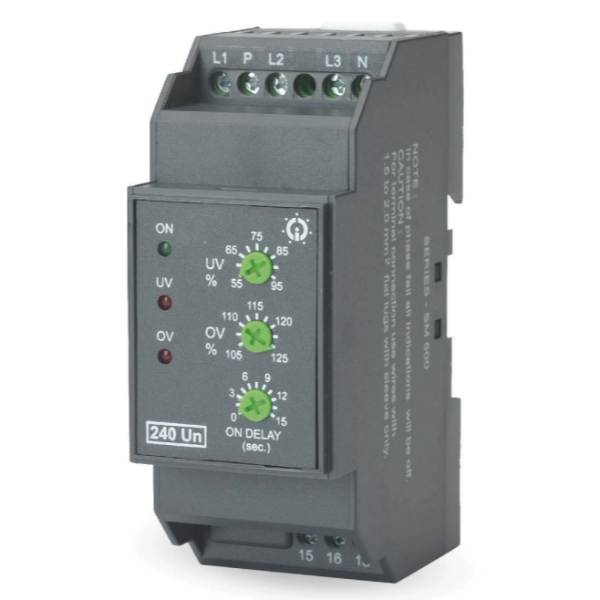

GIC SM500 - 240 VAC, Selectable Under/Over Voltage Monitoring Device (MD71B9)


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
GIC

GIC SM500 - 240 VAC, Selectable Under/Over Voltage Monitoring Device (MD71B9)

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Protects against Phase Loss, Phase Reversal and Phase Asymmetry
  • Can be configured for 3 Phase 4 Wire or 1 Phase system
  • Selectable Over Voltage / Under Voltage Trip level
  • Selectable Time Delay
  • LED Indications for Power and Fault conditions
  • Voltage Sensing principle
  • 1 C/O or 2 C/O Configuration
Product Specifications

GENERAL

Brand:
GIC
Catalog Number:
MD71B9
Contact Arrangements:
1 C/O
Country of Origin:
India
Degree of Protection:
IP20 For Terminals and IP40 For Enclosure
Humidity:
95 Percent Rh
Model Number:
SM500
Mounting:
Base/DIN Rail
Output:
Relay Output - 1 C/O, Contact Rating - 5A
Power Consumption:
4 VA
Product Type:
Selectable Under/Over Voltage Monitoring Device
Supply Voltage:
240 VAC (1 Phase, 3 Phase, 4 Wire), 50 to 60 Hz
Temperature:
Operating: -15 to +50 Degree C, Storage: -25 to 70 Degree C
Time Delay:
ON Delay 0-15 min
