Catalog Number:
MAG03D0427
Contact Arrangements:
1 C/O
Degree of Protection:
IP20 For Terminals, IP30 For Enclosure
Output:
Relay Output - 1 C/O, Contact Rating - 5A
Phase Asymmetry:
30 Percent Fixed
Product Type:

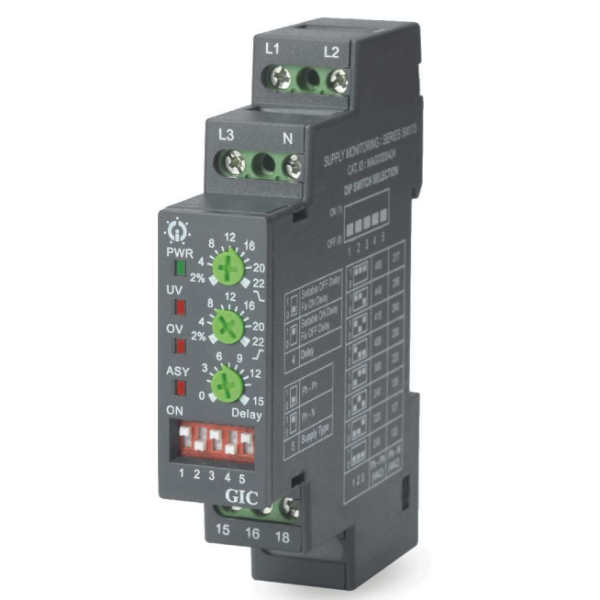

Voltage Monitoring Device
Supply Voltage:
415 VAC (3 Phase 4 Wire), 50 to 60 Hz
Temperature:
Operating: -20 to +60 Degree C, Storage: -25 to 70 Degree C
Time Delay:
Selectable ON Delay 750 msec, Selectable OFF Delay 500msec
Type:
Phase Loss Monitoring Device
