Catalog Number:
MAG03D0426
Contact Arrangements:
1 C/O
Degree of Protection:
IP20 For Terminals, IP30 For Enclosure
Output:
Relay Output - 1 C/O, Contact Rating - 5A
Phase Asymmetry:
10 Percent Fixed, 5 to 25 Percent Selectable

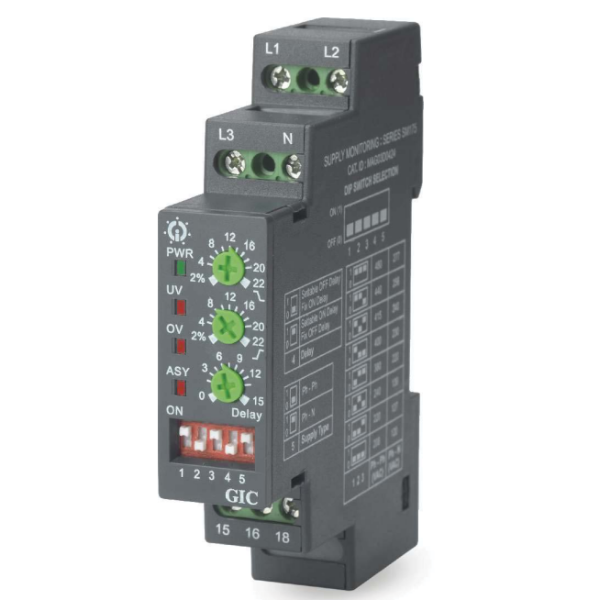

Product Type:
Voltage Monitoring Device
Supply Voltage:
240 VAC (3 Phase 4 Wire), 50 to 60 Hz
Temperature:
Operating: -20 to +60 Degree C, Storage: -25 to 70 Degree C
Time Delay:
Selectable ON Delay 0s to 15 s/min, Selectable OFF Delay 0 to 15 s/min
Type:
Phase Loss, Phase Sequence, Under/Over Voltage
