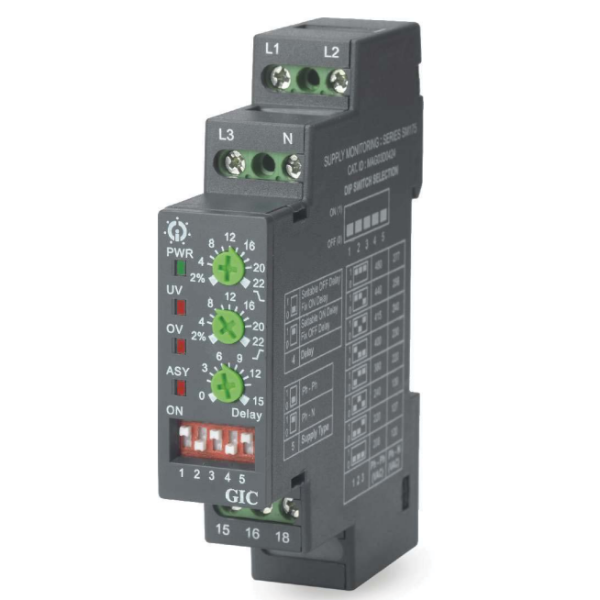

GIC SM175 - 240 VAC Voltage Montioring Relay Series (MAG03D0425)


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
GIC

GIC SM175 - 240 VAC Voltage Montioring Relay Series (MAG03D0425)

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Compact 17.5 mm Wide
  • Multi-Voltage: Three Phase 3 Wire at 208-480
  • VAC or Three Phase 4 Wire at 120-277 VAC
  • Can be configured for 3 Phase 3 Wire or
  • 3 Phase 4 Wire system
  • Protection against Phase loss, Phase Sequence,Phase Asymmetry, Under Voltage and Over Voltage
  • Selectable Under Voltage / Over Voltage, Asymmetry and Phase Sequence
  • LED Indication for all Faults and for change in dip switch settings during runtime for better security
  • Adjustable ON/OFF Time Delay in seconds /minutes 1 C/O Configuration
Product Specifications

GENERAL

Brand:
GIC
Catalog Number:
MAG03D0425
Contact Arrangements:
1 C/O
Country of Origin:
India
Degree of Protection:
IP20 For Terminals, IP30 For Enclosure
Humidity:
95 Percent Rh
Model Number:
SM175
Mounting:
Base/DIN Rail
Output:
Relay Output - 1 C/O, Contact Rating - 5A
Phase Asymmetry:
10 Percent Fixed
Power Consumption:
16VA
Product Type:
Voltage Monitoring Device
Supply Voltage:
240 VAC (3 Phase 4 Wire), 50 to 60 Hz
Temperature:
Operating: -20 to +60 Degree C, Storage: -25 to 70 Degree C
Time Delay:
ON Delay 0s to 15s, OFF Delay 0.1s to 999, ON Delay 0 to 15s
Type:
Phase Loss, Phase Sequence, Under/Over Voltage
