Contact Arrangements:
1 C/O
Degree of Protection:
IP20 For Terminals, IP30 For Enclosure
Output:
Relay Output - 1 C/O, Contact Rating - 5A
Phase Asymmetry:
10 Percent Fixed

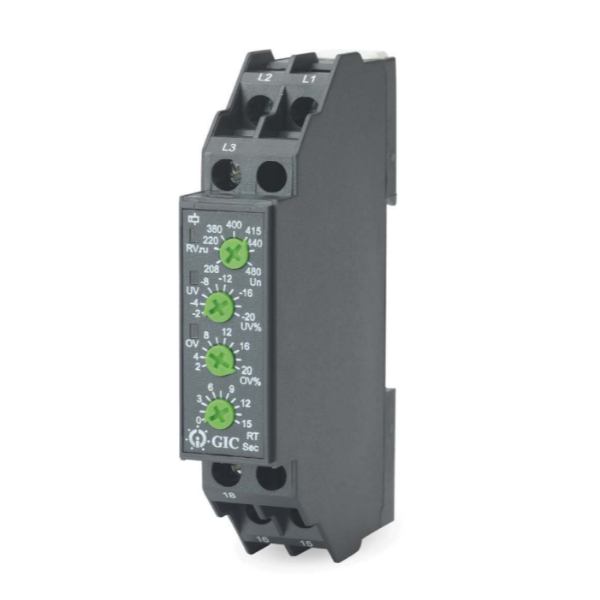

Product Type:
Voltage Monitoring Device
Supply Voltage:
208 to 480 VAC (3 Phase 3 Wire), 50 to 60 Hz
Temperature:
Operating: -15 to +60 Degree C, Storage: -20 to 80 Degree C
Time Delay:
Selectable ON Delay 0.5s to 15sec, OFF Delay 5s
Type:
Phase Loss, Phase Sequence, Under/Over Voltage
