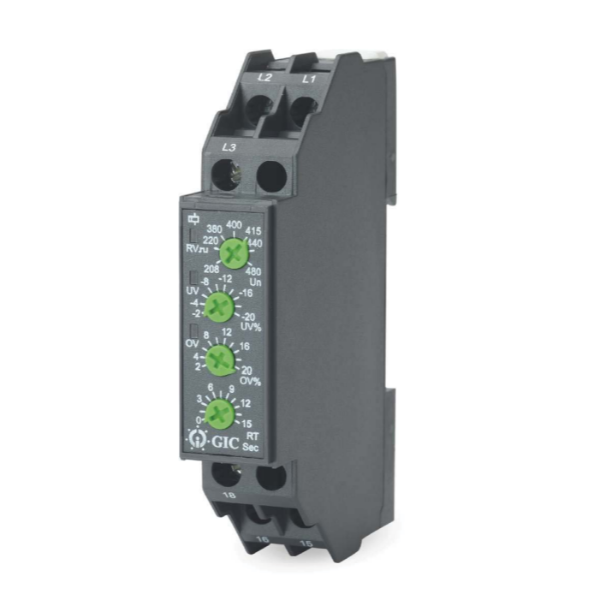

GIC SM175 - 208 to 480 VAC Voltage Monitoring Relay Series (MA21DN)


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
GIC

GIC SM175 - 208 to 480 VAC Voltage Monitoring Relay Series (MA21DN)

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Compact 17.5 mm Wide
  • Protects against Phase Loss, Phase Reversal and Phase Asymmetry
  • Multi-Voltage: Three Phase Three Wire at 208 - 480 VAC
  • Selectable Under Voltage / Over Voltage and Asymmetry
  • LED Indication for all Faults and for change in settings during run time for better security
  • Adjustable Time Delay
  • 1 C/O Configuration
Product Specifications

GENERAL

Brand:
GIC
Catalog Number:
MA21DN
Contact Arrangements:
1 C/O
Country of Origin:
India
Degree of Protection:
IP20 For Terminals, IP30 For Enclosure
Humidity:
95 Percent Rh
Model Number:
SM175
Mounting:
Base/DIN Rail
Output:
Relay Output - 1 C/O, Contact Rating - 5A
Phase Asymmetry:
5 to 15 Percent Variable
Power Consumption:
3VA
Product Type:
Voltage Monitoring Device
Supply Voltage:
208 to 480 VAC (3 Phase 3 Wire), 50 to 60 Hz
Temperature:
Operating: -15 to +60 Degree C, Storage: -20 to 80 Degree C
Time Delay:
ON Delay 5 sec, OFF Delay 100msec (0 to 15s Selectable)
Type:
Phase Loss, Phase Sequence Monitoring
