Buy {[en]:GIC Micon 175 - 0.3s to 30 Hour, 12V On Delay Timer (150DT4) Online
GIC

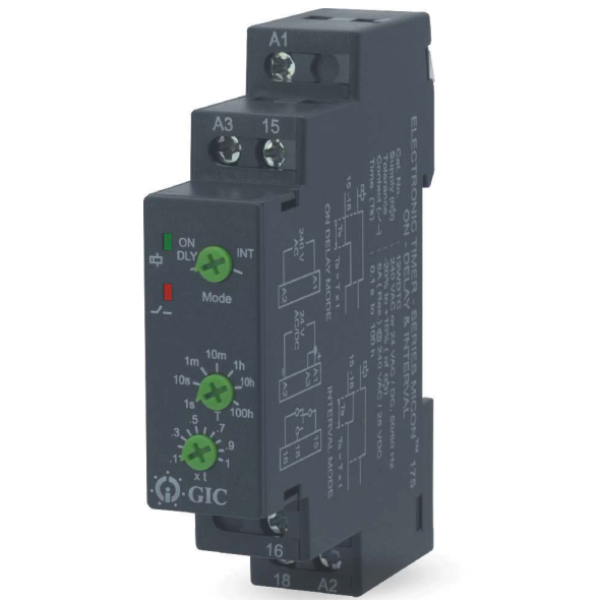

GIC Micon 175 - 0.3s to 30 Hour, 12V On Delay Timer (150DT4)


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
GIC

GIC Micon 175 - 0.3s to 30 Hour, 12V On Delay Timer (150DT4)

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

• Compact 17.5mm Wide
• Integrated Dual Voltage
• Functions: ON Delay, Interval, Star Delta, One Shot, Signal Off Delay
• Wide Time Range: 0.1s - 100h
• LED Indications for Power and Relay status
• Low Power Consumption

Product Specifications

GENERAL

Brand:
GIC
Catalog Number:
150DT4
Contact Arrangements:
1 C/O
Country of Origin:
India
Degree of Protection:
IP20 For Terminals, IP40 For Enclosure
Dimension:
17.5x65x90 mm
Enclosure:
Flame Retardant UL94-V0
Frequency:
50/60 Hz
Humidity:
95 Percent Rh
LED Indication:
Green - Power ON, Red - Relay ON
Model Number:
Micon 175
Mounting:
Base/DIN Rail
Power Consumption:
8 VA
Product Type:
Timer
Reset Timing:
100 ms
Temperature:
-10 to 55 Degree Temperature, -20 to 70 Degree Temperature
Timer Type:
On Delay
Timing Range:
0.3s to 30 Hours
Voltage:
12 VDC
Weight:
75 Grams
