Buy Gedore Klann KL 0500 45 K - SAC Clutch Tool Set In Plastic Storage Case Online
Gedore Klann

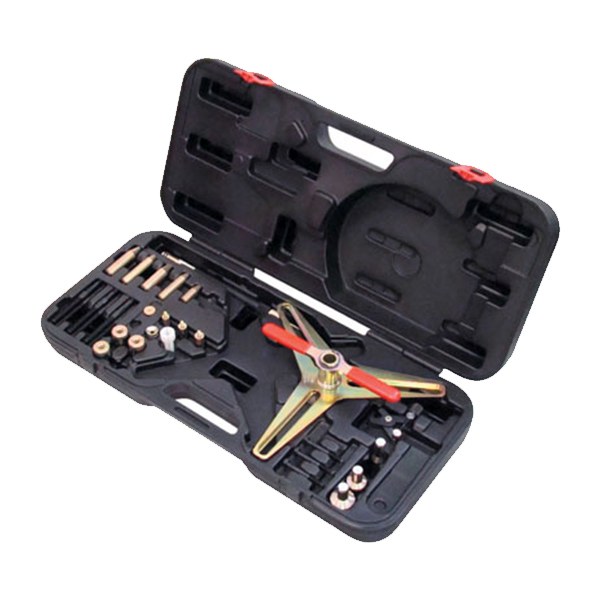

Gedore Klann KL 0500 45 K - SAC Clutch Tool Set In Plastic Storage Case


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Gedore Klann

Gedore Klann KL 0500 45 K - SAC Clutch Tool Set In Plastic Storage Case

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Suitable for SAC-clutches (3-hole pit TT ch) e.g. VW-Audi, BMW, Mercedes, Volvo, etc.
  • The clutch tool set KL-0500-45 K enables the professional removal and replacement of SAC-clutches (self-adjusting-clutch).
  • Correct removal and replacement of clutches is almost impossible without this tool set due to the risk of damaging or distorting the clutch, which will cause incomplete separation or “grabbing” of the clutch. A clutch installed improperly is defective and must be replaced. The tool set KL-0500-45 K prevents damage to the SAC-clutch when removing and replacing it, as well as distortion of the adjusting ring in the pressure plate.
  • The newly developed clutch aligner KL-0500-405 enables the alignment of clutch plates on vehicles without the guide bearing in the crankshaft. The two clamping/alignment elements ensure accurate alignment in the clutch plate on the first clamping element (Ø 15 - 28 mm) and accurate alignment in the guide bearing and the crankshaft bore, on the second element (Ø 12 - 28 mm).
  • Even clutches on engines where the crankshaft bore-Ø is larger than the clutch disc hub-Ø can neatly and accurately be aligned with this tool.

Application: Before removal, pretension the clutch pressure plate with the clutch pretensioner: For this, unscrew the 3 retaining screws and screw in the 3 threaded bolts. Place the clutch pretensioner on the threaded bolts and lock it with the knurled nuts. Screw in the pressure spindle until the diaphragm spring reaches the limit stop. Unscrew the remaining retaining screws, uncompress the diaphragm spring, and remove the clutch pretensioner and the clutch pressure plate.

Clutch plate alignment: Insert the clutch aligner together with the clutch disc and the appropriate mandrel into the flywheel. Pressure plate installation: Place the pressure plate on the flywheel and mount the clamping device in the same way, as it is required for removal.

  • Compress the diaphragm spring until the limit stop is reached and screw in the retaining screws. Advantages: Pretensioning the clutch pressure plate when removing and installing (important to avoid distortion on the clutch).
  • Centering the clutch plate relative to the guide bearing or the pressure plate.
  • Resetting the adjusting ring with the resetting tool KL-0500-403. Accessories:
  • KL-0500-15 - Clutch Mandrel Ø 26.5 mm (BMW, Audi)
  • KL-0149-131 - Pin wrench adjustable Ø 14 - 100 mm, pin-Ø 5 mm Necessary to remove the pretensioning ring on Audi
Product Specifications

GENERAL

Brand:
Gedore Klann
Contents:
KL-0500-401 Clutch compressor 3-hole-pitch, KL-0500-403 Resetting tool, KL-0500-404 Clutch mandrel set, KL-0500-405 Clutch aligner, double acting, KL-0500-4590 A Plastic case not shown
Model:
KL 0500 45 K
Product:
SAC Clutch Tool Set In Plastic Storage Case
Suitable for:
VW-Audi, BMW, Mercedes, Volvo, etc
