Buy Gedore Klann KL 0250 40 - Extractor For Clamping Bolt And Ball Joints Online

Gedore Klann KL 0250 40 - Extractor For Clamping Bolt And Ball Joints


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Gedore Klann KL 0250 40 - Extractor For Clamping Bolt And Ball Joints

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Suitable for Audi A4 (up to ‘2000) / VW Passat (up to ‘2005) front axle

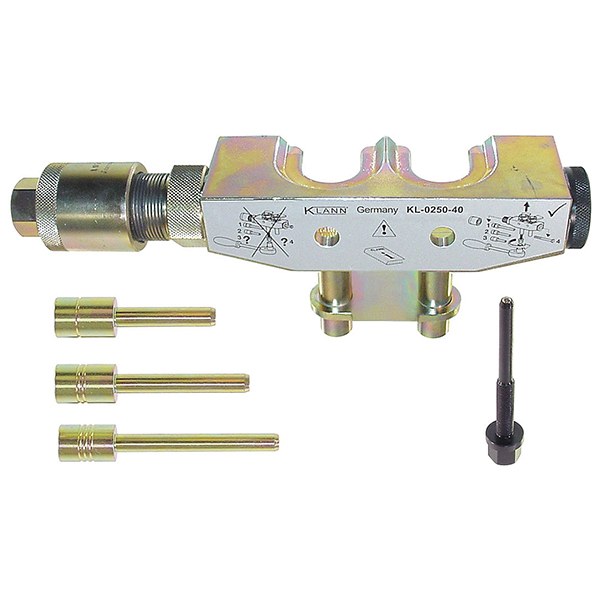

  • The extractor KL-0250-40 with its pressure unit allows the quick and professional extraction of the clamping bolt and both upper pivot pins
  • The tool can be used for both left-hand and right-hand wheel suspension assemblies

Application:

  • Mount tool with pressure unit on the steering knuckle (pressure drift no. I is already inserted).
  • Use impact gun to drive the hex nut and press out the clamping bolt.
  • The clamping bolt must be removed in three stages using the pressure unit. For this, insert the drifts II and III successively.
  • Remove the hex clamping bolt completely. If the hex clamping bolt remains stubborn, the supplement pressure drift set KL-0250-402 allows the bolt to be pressed out completely.
  • Remove the hexagonal nut. Completely remove the pressure drift so that the clamp bore is empty.
  • Push both pivot pins out of the clamping bore using the pressure spindle.

Advantages:

  • Time savings of approx. 2 - 4 hours
  • No risk of damage to the suspension components
Product Specifications

GENERAL

Brand:
Gedore Klann
Model:
KL 0250 40
Product:
Extractor For Clamping Bolt And Ball Joints
Suitable for:
Audi A4 (up to 2000, VW Passat up to 2005 front axle
