Buy Gedore Klann KL 0039 412 K - Pulling Device For Silent Blocks (Mechanical Drive) Online

Gedore Klann KL 0039 412 K - Pulling Device For Silent Blocks (Mechanical Drive)


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Gedore Klann KL 0039 412 K - Pulling Device For Silent Blocks (Mechanical Drive)

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Universally suitable for silent blocks or pivoting bearings with Ø 40 - 71 mm
  • The pulling device KL-0039-412 K enables the quick, safe and professional removal and replacement of silent blocks and pivoting bearings
  • The mechanical drive, included in the set, enables the pulling out of silent blocks and pivoting bearings with a minimum inner bore-Ø of 10 mm

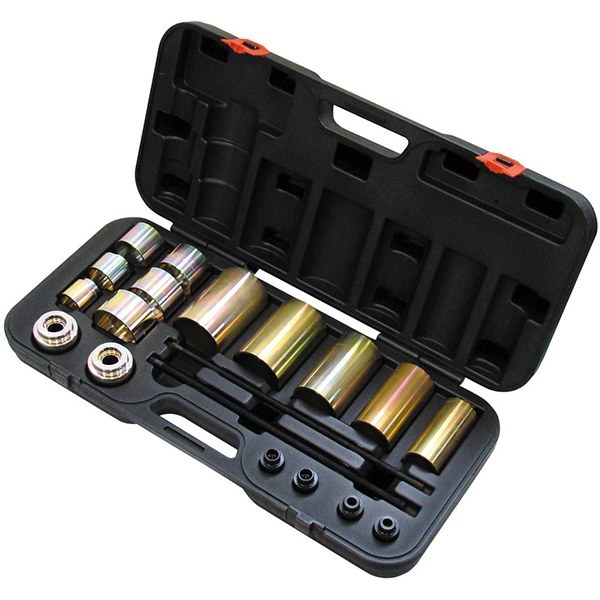

  • Consists of retainer adaptor for mechanical spindle KL-0039-1011 (2x), pull spindle M10x1.25 with nuts KL-0039-2010, pull spindle M14 with nuts KL-0039-2014 , press- /support sleeves, short with Ø40, Ø50, Ø58, Ø66, Ø70, Ø80, Ø50, Ø60, Ø68, Ø76, Ø80 and plastic storage case KL-0039-4129.
  • Additional press/support sleeves with diameters from 30 mm to 38mm and from 82 mm to 90 mm, as well as pull spindles M12, M16 and M20 are available upon request
  • The possibility to complement the tool set with other parts of the KL-0039 series, such as centering and pressure rings or press/support sleeves, makes this pulling device almost universally applicable, e.g. also for changing wheel bearings

Accessories:

  • Optionally, a hydraulic drive 17 t can be used if the silent blocks are very tight-fitting or heavily corroded.

Accessories:

  • The additional use of the press frame and the pressure spindle also enables the removal and replacement of e.g. ball joints etc.
Product Specifications

GENERAL

Brand:
Gedore Klann
Model:
KL 0039 412 K
Pivot Bearing Diameter:
40 - 71 mm
Product:
Pulling Device For Silent Blocks Mechanical Drive
